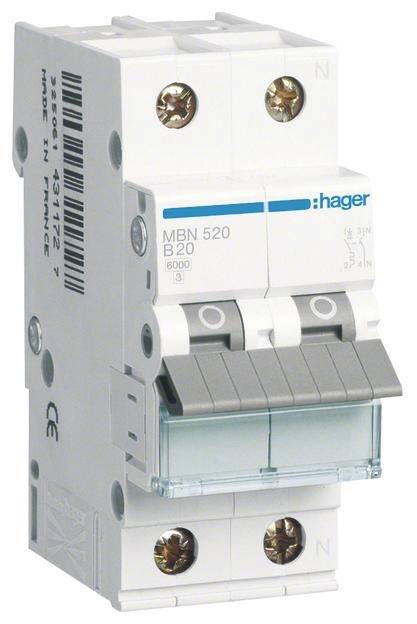

Hager MBN520 MBN520 Circuit breaker 2-pin 20 A 230 V
Product type
Circuit breaker
Number of pins
2
Nominal current - rounded value
20 A
Nominal current
20 A
Dim
(L x W x H) 150 cm x 50 mm x 100 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
227.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199011 Hager MBN520 MBN520 Circuit breaker 2-pin 20 A 230 V
User & Safety Instructions
User & Safety Instructions 3199011 Hager MBN520 MBN520 Circuit breaker 2-pin 20 A 230 V
Description
Line circuit breaker 1P+N 6kA B-characteristic 20A 2 modules. Line circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delay thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
This text is machine translated.
