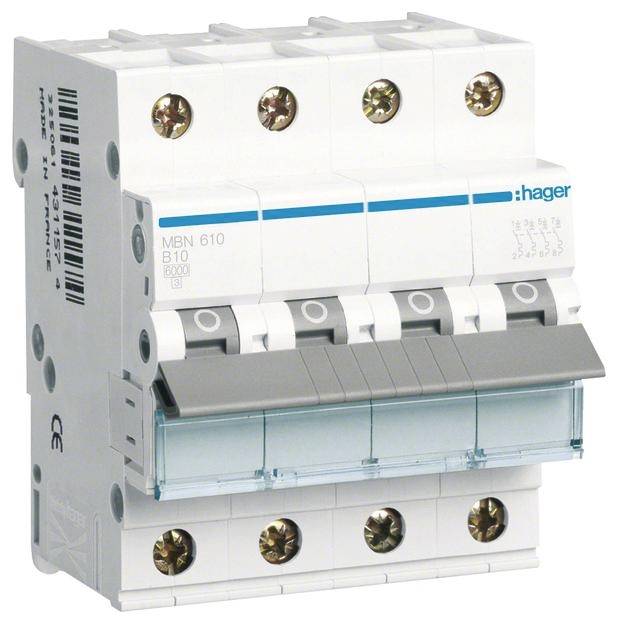

Hager MBN610 MBN610 Circuit breaker 4-pin 10 A 400 V
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
10 A
Nominal current
10 A
Dim
(W x H x D) 85 x 70 x 73 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
10 A
- Nominal current
10 A
- Dim
(W x H x D) 85 x 70 x 73 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
85 mm
- Height
70 mm
- Depth
73 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199018 Hager MBN610 MBN610 Circuit breaker 4-pin 10 A 400 V
User & Safety Instructions
User & Safety Instructions 3199018 Hager MBN610 MBN610 Circuit breaker 4-pin 10 A 400 V
Description
Circuit breaker switch 3P+N 6kA B-characteristic 10A 4 modules. Line circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delay thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
