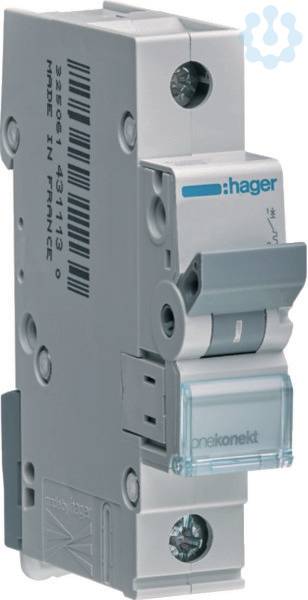

Hager MCN106 MCN106 Circuit breaker 1-pin 6 A 400 V
Product type
Circuit breaker
Number of pins
1
Nominal current - rounded value
6 A
Nominal current
6 A
Factory colour
Multicolour
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Factory colour
Multicolour
- Dim
(W x H x D) 87 x 18 x 74 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
87 mm
- Height
18 mm
- Depth
74 mm
- Weight
0.09
AC
70 mm
6 A
400 V
C
3
3
2
1
IP20
FALSE
FALSE
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2818826 Hager MCN106 MCN106 Circuit breaker 1-pin 6 A 400 V
User & Safety Instructions
User & Safety Instructions 2818826 Hager MCN106 MCN106 Circuit breaker 1-pin 6 A 400 V
Description
Circuit breaker switch 1 pin 6kA C-Characteristic 6A 1 Module. Line circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delay thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
