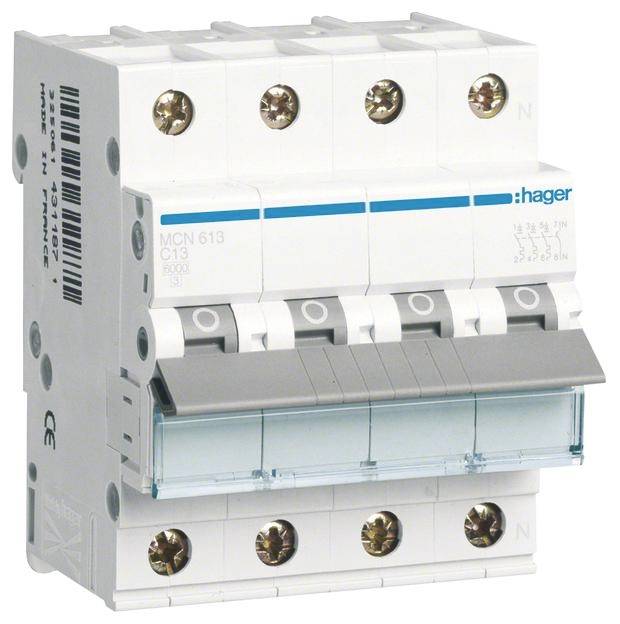

Hager MCN613 MCN613 Circuit breaker 4-pin 13 A 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
13 A
Nominal current
13 A
Dim
(W x H x D) 87.0000 x 70.0000 x 73.0000 mm
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
13 A
- Nominal current
13 A
- Dim
(W x H x D) 87.0000 x 70.0000 x 73.0000 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
87.0000 mm
- Height
70.0000 mm
- Depth
73.0000 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3199081 Hager MCN613 MCN613 Circuit breaker 4-pin 13 A 400 V
User & Safety Instructions
User & Safety Instructions 3199081 Hager MCN613 MCN613 Circuit breaker 4-pin 13 A 400 V
Description
Circuit breaker switch 3P+N 6kA C-Characteristic 13A 4 Modules. Line circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delay thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
