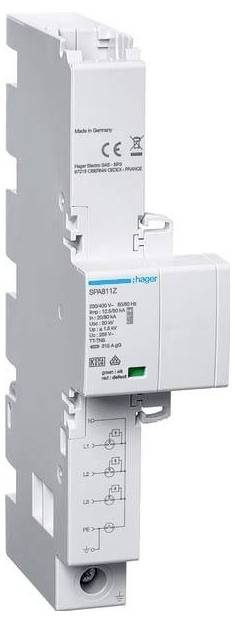

Hager SPA811Z SPA811Z Lightning conductor Surge protection for: 40 mm busbar 12.5 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Lightning conductor
- Surge protection for
40 mm busbar
- Leakage current
12.5 kA
- Manufacturer part #
SPA811Z
- Factory colour
Multicolour
- Content
1 pc(s)
- Packaging type
Piece
- Weight
0.65
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893688 Hager SPA811Z SPA811Z Lightning conductor Surge protection for: 40 mm busbar 12.5 kA Piece 1 pc(s)
Description
Kombi conductor T1+T2+T3 4P Imp 12.5kA TT+TNS 315A. Combination conductor for use in the pre-meter area according to VDE-AR-N 4100. Conductor type 1 + type 2 according to DIN EN 61643-11 (VDE 0675-6-11). Following current-free, encapsulated spark technology. Can be mounted directly on 40 mm busbar system. Compatible with feeder adapter and busbar box for voltage tapping for RFZ and APZ. Optional telecommunication contact can be retrofitted.
