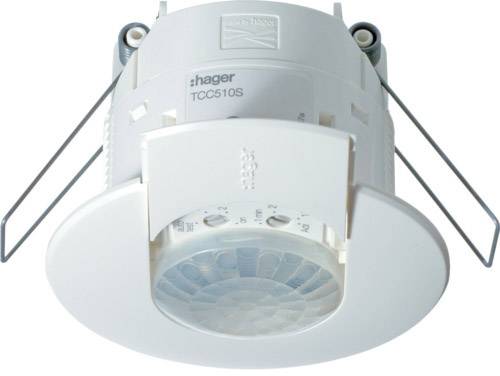

Hager TCC510S Ceiling Motion detector 360 ° Polar white
EAN:
Part number:
Item no:
Highlights & Details
HAGER presence detector KNX 1 Channel TCC 510S
- Combination of several detector for the purpose of extending the detection range.
- With Programming button
- Bus connection via terminal
- With spring clips for ceiling installation
- With integrated bus coupling unit
- With potentiometers for setting the threshold and lag time without disassembly
Technical specifications
- Product type
Motion detector
- Detection angle
360°
7 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
32 V
- Factory colour
Polar white
- Height
70 mm
- (Ø)
78 mm
- Dim
(Ø x H) 78 mm x 70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845441 Hager TCC510S Ceiling Motion detector 360 ° Polar white
Description
1-channel presence detector for ceiling installation for brightness and motion-dependent switch. With integrated bus coupling unit for connection to the KNX bus. Basic setting directly on the already installed device without dismantling possible or optionally via the remote control EE 807. Brightness range 5 - 1000 Lux.. Switch-off delay can be selected freely between 5 sec and 8 h. Detection range: approx. 7 m (at a mounting height = 2.5m). Functions: ON/OFF, dimming value, dimming value with presence and absence, time functions, scene to scene with presence and absence. Master/Slave function for use of several presence detectors in the room. The device is programmable via the KNX ETS or KNX easy.
This text is machine translated.
This text is machine translated.
Features
- Operating voltage via bus 21 … 32 V DC
- Recommended installation height 2.5 … 3.5 m
- 360 ° detection angle
- Detection field diameter, on the floor ≈ 7 m
- Detection field dia., in desk high ≈ 5 m
- Delay time adjustable 1 min… 1 h
- Measuring range for brightness 5 … 1000 lx
- Operating temperature: -10 to 45 °C
- Installation opening Ø 60 … 63 mm
- Dimensions (Ø x H) 78 x 70 mm
- Color matt polar white
