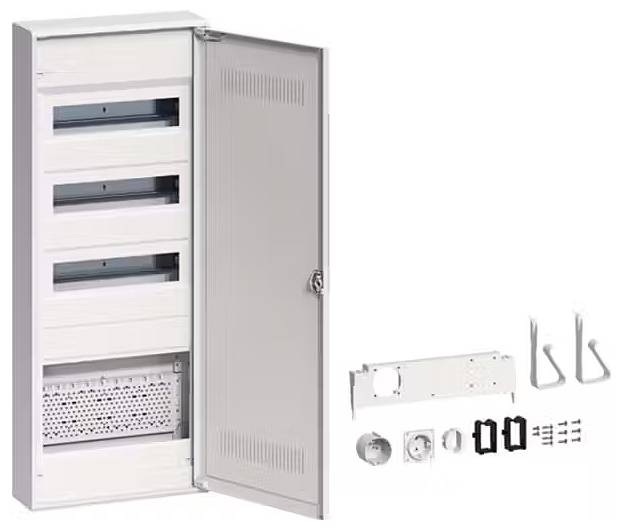

Hager VA603WWH VA603WWH Distribution board (equipped) Surface-mount No. of rows = 3 Content 1 pc(s)

Hybrid, volta, surface-mounted, 36PLE, 1 mounting plate, Socket and plastic door.Installation small distributor surface-mounted made of plastic, tested according to DIN VDE 61439-3. Rated voltage max. 400 V / 50 Hz, protection class IP30.
Consisting of plastic floor plate and break-out cable guide. Ventilation door made of steel sheet with plastic insert. Front flush with inside, hand-operated hinges. Door lock with front flush handle and automatic fold-back handle. Door stop right or left without blinding frame-dismantling.
3-row device carrier made of galvanized steel plate 2-row plastic device cover for 36 modules with 46 mm device slot. Finger-safe PE/N terminal with plug-in technology in an mounting-friendly snap technology. A seal has been fitted to provide secure separation between the multimedia part and the distribution of the circuit, which also allows for up to two sockets at the same time. Generous mounting space with pre-mounted / n mounting plate made of plastic regular punching according to DIN 24041. Device holder for the screw-less mounting of devices for direct mounting on the perforated plate by hanging or screwing are included.
Cable routing clips can be installed in the designated quick-release fasteners on the left and right.

This text is machine translated.
