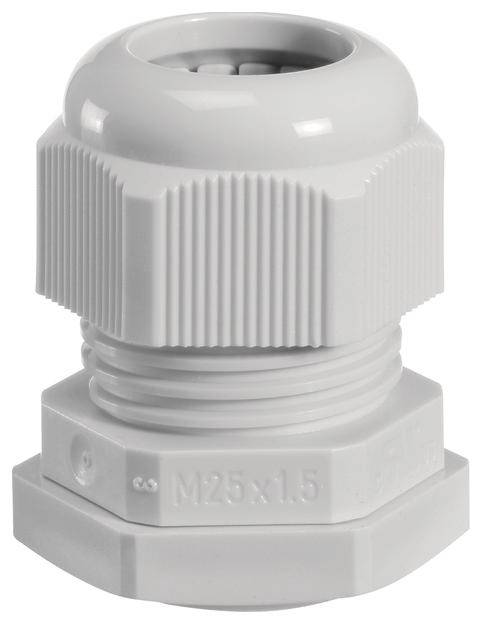

Hager VZ025M Cable gland with strain relief M25 M25 Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Material
Plastic
Clamp Ø
11 mm
Terminal Ø (max.)
17 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Grey
- External thread
M25
- Internal thread
M25
- Material
Plastic
- Clamp Ø
11 mm
- Terminal Ø (max.)
17 mm
- Thread length
8 mm
- Min. temperature
-20 °C
- Max. temperature
100 °C
- Spanner size
29 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
VZ025M
- Type
VZ025M
Grey
Straight
TRUE
TRUE
7035
Untreated
29 mm
8 mm
TRUE
FALSE
FALSE
Polyamide (PA)
-20-100 °C
Metric
Plastic
FALSE
FALSE
FALSE
TRUE
29 mm
FALSE
11-17 mm
IP65
None
25
None
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3195911 Hager VZ025M Cable gland with strain relief M25 M25 Plastic Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3195911 Hager VZ025M Cable gland with strain relief M25 M25 Plastic Grey 1 pc(s)
Description
Screwed cable gland, vector, IP65 M25, plastic
