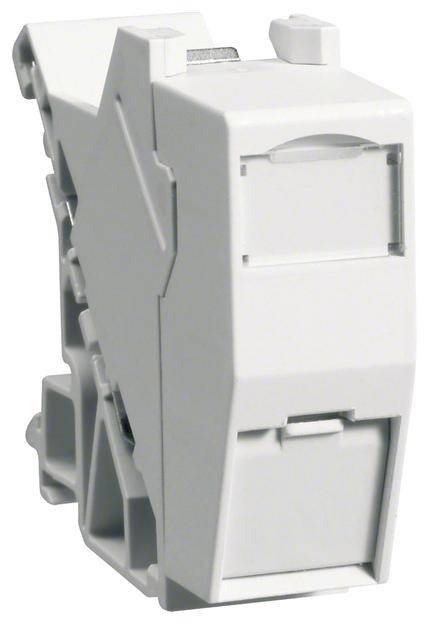

Hager VZ314 Hager VZ314 RJ45 module E-Dat universal REG 8 (8) IP20 Cat.6A RJ45 RJ45 module Plastic Grey 1 pc(s)

RJ45 module (E-Dat), universal, reg 8(8) IP20 CAT. 6A, RJ45. Universal data connection unit 1xRJ45 for modular DIN rail installation, width 1TE (> 18mm) DIN 42880, protection class I or II depending on installation type. Protection class IP 20 Category 6 tested design for data transfer rates up to 10 GBit to 500 MHz, according to IEEE 802.3an fully shielded module with metal housing made of zinc die-cast, nickel-plated surfaces with single shielded RJ45 sockets, module housing consisting of only two parts, large shield connection, strain relief separate from the shield connection for connection of category 6 and 7-cable supporting frame for module acceptance made of plastic with potential balancing spring (removable) Compliance with category 6 12C-de-embedded according to ISO/IEC 11801:2002, EN50173-1:2002 certified by an accredited testing laboratory Compliance with permanent link class E / 250 MHz on all pair assignments according to ISO/IEC 11801:2002, EN50173-1:2002 Compliance with EN 55022 Class B, EN 50082-1 with integrated color-coded dust shield flap metal and plastic parts recyclable; proof of manufacturer must be attached.

This text is machine translated.
