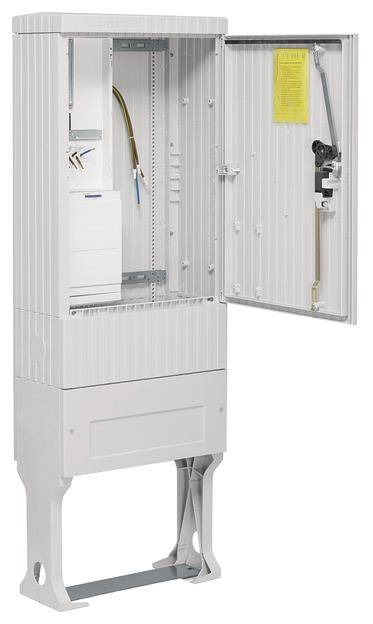

Hager ZAB175AP0 Street lighting connection column Univ. Z 1ZP 1empty 2-row Street light connection column Plastic 1 pc(s

Street lighting connection column, universZ, 1 meter place, 1 blank place, 2-field. Road lighting connection post as per DIN EN 61439, protection class IP 44, with ditch lights, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598. Road lighting connection column is equipped according to the current technical connection conditions of the respective power supply and covers the respective TAB-requirements. Profiled housing in ribbed design. Door with opening angle 180 degrees at free state and 90 degrees in series housings. Right door is unhinged. Lockable with pivot lever and three-point base plugs with 1 or 2 profile half cylinders. Built-in cylinder below with the same closing series. A second lock cylinder (e.g. from VVB locking system) can be installed at the top after removing the square lock. If a second half cylinder is not installed, the second upper opening must be fitted with a dummy. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Road lighting connection columns are built according to technical guideline Connection cabinets in the open/connection of fixed switching and control cabinets and counter connection columns to the low-voltage network of the VNB. The installation comprises of insulation-insulated counter fields DIN 43870 (functional flat) for counter and tariff switching device (TSG). Meter locations or TSG-position are equipped with an IP54 cover. Depending on the version, empty spaces are intended as retrofitting fields. Grave base and counter connection column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.

This text is machine translated.
