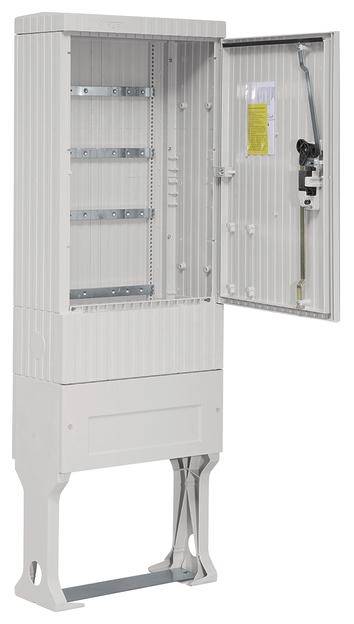

Hager ZAK175A Hager ZAK175A cable distribution column ZAS series 175 with SAS System 4xE Cu Cable distribution pole Grey
EAN:
Part number:
Item no:
Product type
Cable distribution pole
Factory colour
Grey (RAL 7035)
Number of pins
4
Dim
(W x H x D) 583 x 1710 x 277 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Cable distribution pole
- Factory colour
Grey (RAL 7035)
- Number of pins
4
- Dim
(W x H x D) 583 x 1710 x 277 mm
- Content
1 pc(s)
- Width
583 mm
- Height
1710 mm
- Depth
277 mm
Documents & Downloads
Datasheet
Datasheet 3199834 Hager ZAK175A Hager ZAK175A cable distribution column ZAS series 175 with SAS System 4xE Cu Cable distribution pole Grey
User & Safety Instructions
User & Safety Instructions 3199834 Hager ZAK175A Hager ZAK175A cable distribution column ZAS series 175 with SAS System 4xE Cu Cable distribution pole Grey
Description
Cable distributor column, ZAS, series 175, with busbar system, 4 x E-Cu Cable distributor column according to DIN EN 61439, protection class IP 44, with gravitational socket, made of glass-fiber reinforced polyester FS 833.5 according to DIN EN 14598. Cable distributor column with busbar system for fitting NH fuse switch strips. Profiled housing in ribbed design. With bus bar system 4-pin E-Cu 30 x 6 mm. Door with opening angle 180 degrees at free state and 90 degrees in series housings. Right door is unhinged. Lockable with pivot lever and three-point Basle catch, single lock with profile half cylinders. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Grave base and cable distribution column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.
This text is machine translated.
This text is machine translated.
