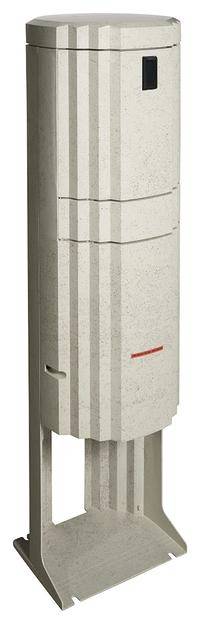

Hager ZAN135CAD Hager ZAN135CAD house connector column 1x3NH2 Loop through version House connection pole 1 pc(s)
Product type
House connection pole
Dim
(W x H x D) 360 x 1350 x 360 mm
Content
1 pc(s)
Width
360 mm
Height
1350 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
House connection pole
- Dim
(W x H x D) 360 x 1350 x 360 mm
- Content
1 pc(s)
- Width
360 mm
- Height
1350 mm
- Depth
360 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3199884 Hager ZAN135CAD Hager ZAN135CAD house connector column 1x3NH2 Loop through version House connection pole 1 pc(s)
Description
House connection block, series 135, 1x3NH2, loop-through version. Equipped distribution column round as house connection pole, protection class IP 44, with grazing base, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598 with recycled material. Profiled housing in ribbed design. With NH-fuse base and contact protection cover, removable plug doors, single closure with profile half cylinders (basic design), other lock depending on VNB models. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Grave base and distributor column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.
