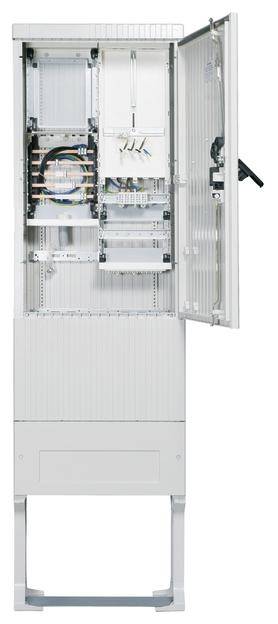

Hager ZAS205BD15A Hager ZAS205BD15A meter connection column universZ 1ZP 3.HZ 5pol +APZ Counter connection column Plasti

Counter connection column 205, uniZ, 1 counter place, 3-point, 5-pole, Base, APZ. Meter connection column, protection class IP 44, as base column inclusive of graving socket, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598. The meter connection column fulfills the requirements of DIN VDE 0603-1 (VDE 0603-1):2017-06 in connection with the DIN VDE 0603-2-1 (VDE 0603-2-1):2017-06. Furthermore, the system is built based on the applicable application guidelines of VDE-AR-N 4100:2019-04 including the associated correction VDE-AR-N 4100 Ber 1:2019. By means of additional components, the base column is removed into a ready-to-connect counter connection column of the corresponding VNB. Profiled housing in ribbed design. Door with opening angle 180 degrees at free state and 90 degrees in series housings. Right door is unhinged. Lockable with pivot lever and three-point base plugs with 1 or 2 profile half cylinders. Built-in cylinder below with the same closing series. A second lock cylinder (e.g. from VVB locking system) can be installed at the top after removing the square lock. If a second half cylinder is not installed, the second upper opening must be fitted with a dummy. Ventilation is via labyrinthine ventilation ducts, prevents the penetration of foreign objects and is resistance to impact. Meter connection columns are built according to technical guideline: Connection cabinets in the open/connection of fixed switching and control cabinets and meter connection columns to the low-voltage network of the VNB. The installation consists of insulation-protected counter fields DIN 43870 (functional areas) for counters. Meter slots are equipped for an IP54 cover. Grave base and counter connection column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.
