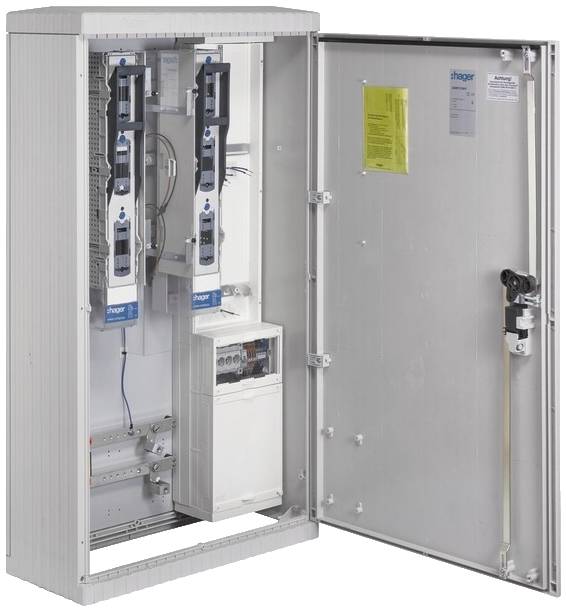

Hager ZAW102BF9 ZAW102BF9 Inverter and metering cabinet Surface-mount Content 1 pc(s)

Converter and measuring cabinet, universal, up to 250 A, TN-C mains, 1005 x 1110 x 315 mm. Equipped converter cabinet according to DIN EN 61439, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598 with recycled material. The converter cabinet is equipped according to the current technical connection conditions of the respective power supply and covers the respective TAB requirements. Profiled housing in ribbed design. Door with opening angle 180 degrees at free state and 90 degrees in series housings. Doors are unhinged, door stop left or right possible. Lockable with pivot lever and three-point base plugs with 1 or 2 profile half cylinders. Built-in cylinder below with the same closing series. A second lock cylinder (e.g. from VVB locking system) can be installed at the top after removing the square lock. If a second half cylinder is not installed, the second upper opening must be fitted with a dummy. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Converter cabinets are built according to technical guidelines, connecting enclosures in the open/connection of fixed switching and control cabinets and meter connection columns to the low-voltage network of the VNB. The installation comprises of insulation-insulated counter fields DIN 43870 (functional flat) for counter and tariff switching device (TSG). Meter locations or TSG-position are equipped with an IP54 cover. Depending on the version, empty spaces are intended as retrofitting fields. Note: Meter connection cabinet must be firmly mounted with mounting base. Floor grating is recommended. Consultation with VNB.
