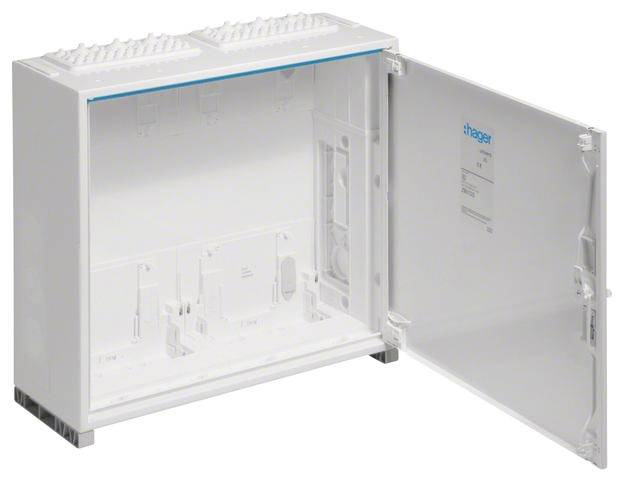

Hager ZB012S ZB012S Switchboard cabinet (empty) Surface-mount No. of partitions = 72 Content 1 pc(s)

Empty cabinet, universZ, 500x550x205mm, protection class II, IP44, 72 seat units. Cabinet casing according to DIN VDE 0603/1, standard DIN 43 870 for surface mounting, flush mounting or partly countersunk mounting. For building a counter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection type IP31 (IP44/IP54 according to DIN VDE 0470/1), protection class II insulated, protection class IP3X behind the door. Consists of cupboard with door made of powder-coated, burned-in, stable profiled 1 mm thick steel plate. Inner lining made entirely of plastic. Cable entries above and below through built-in plastic flange plates, rear embossing in the plastic part and busbar penetrations as double sided lateral embossing in the lower area. Front door flush with inside, adjustable hinges that can be angled either on the right or left with a 110° opening angle. Door lock with pre-driver, from width 800 mm and all cabinets from a height of 1250 mm with three-point lock. Door lock can be replaced by other locks. Cabinet next to each other and flange-able on top of each other. Cabinet size 1 to 5-field with 72 to 540 space units (PLE).
