Hager ZY16CEE Hager ZY16CEE socket flange uniZ 1xCEE 16A seal plate left+right Socket flange 1 pc(s)
Product type
Socket flange
Dim
(L x W x H) 150 cm x 107 mm x 284 mm
Content
1 pc(s)
Width
107 mm
Height
284 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Socket flange
- Dim
(L x W x H) 150 cm x 107 mm x 284 mm
- Content
1 pc(s)
- Width
107 mm
- Height
284 mm
- Length
150 cm
- Depth
150 mm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893111 Hager ZY16CEE Hager ZY16CEE socket flange uniZ 1xCEE 16A seal plate left+right Socket flange 1 pc(s)
Description

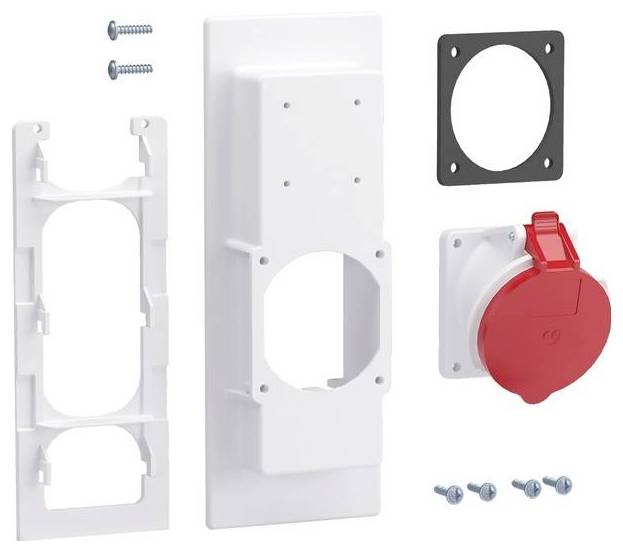

Socket flange, Universal Z, 1xCEE-socket, 16A, cover plate left + right. CEE-socket with socket flange and closing plate for installation of meter cabinets according to DIN VDE 0603-1, protection class IP31/44. Suitable for use with the system-side connection compartment (AAR)-cabinet opening for height 1100 mm and 1400 mm. Note: In accordance with DIN VDE 0603 and application rule VDE-AR-N 4100:2019-04, only the overall height of 1100 mm and 1400 mm may be used as a meter cabinet. CEE sockets must be protected in the distributor panel, not in the system-side connection room (AAR). CEE sockets may not be installed in the multimedia field!
