Name: Hama Single LNB No. of participants: 1 LNB feed size: 40 mm White
Brand: Hama
SKU: 3820241

White cylindrical wall-mounted device with a small circular sensor or button near the bottom.

White cylindrical plumbing filter housing with a side threaded inlet/outlet port, isolated on a white background.

White ceiling-mounted sensor or detector with a round button or lens on a plain white background.

White plastic pipe fitting with a side outlet, labeled 'Ø 40mm' to indicate a 40 mm diameter.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

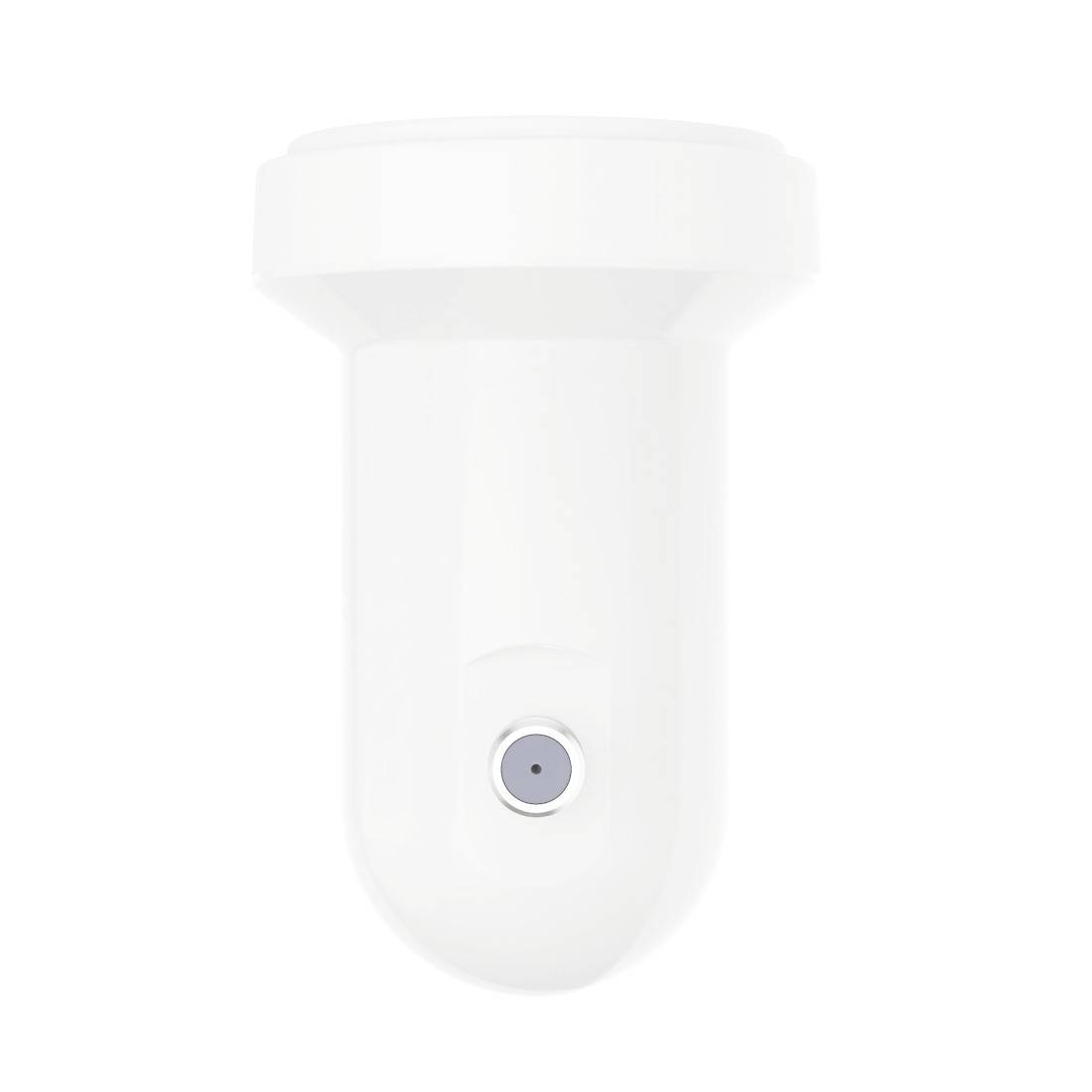

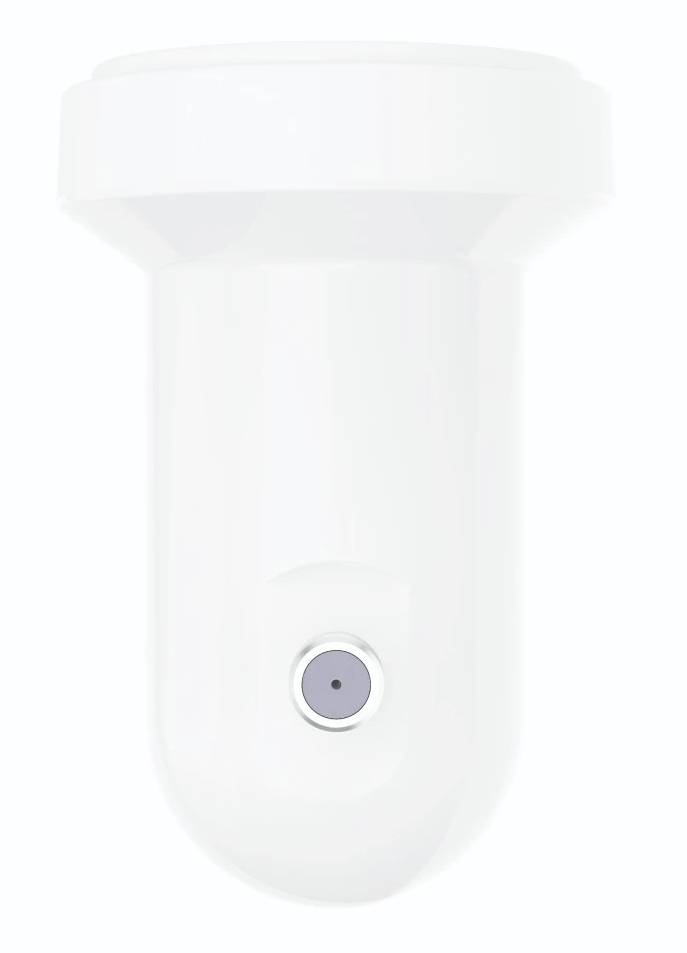

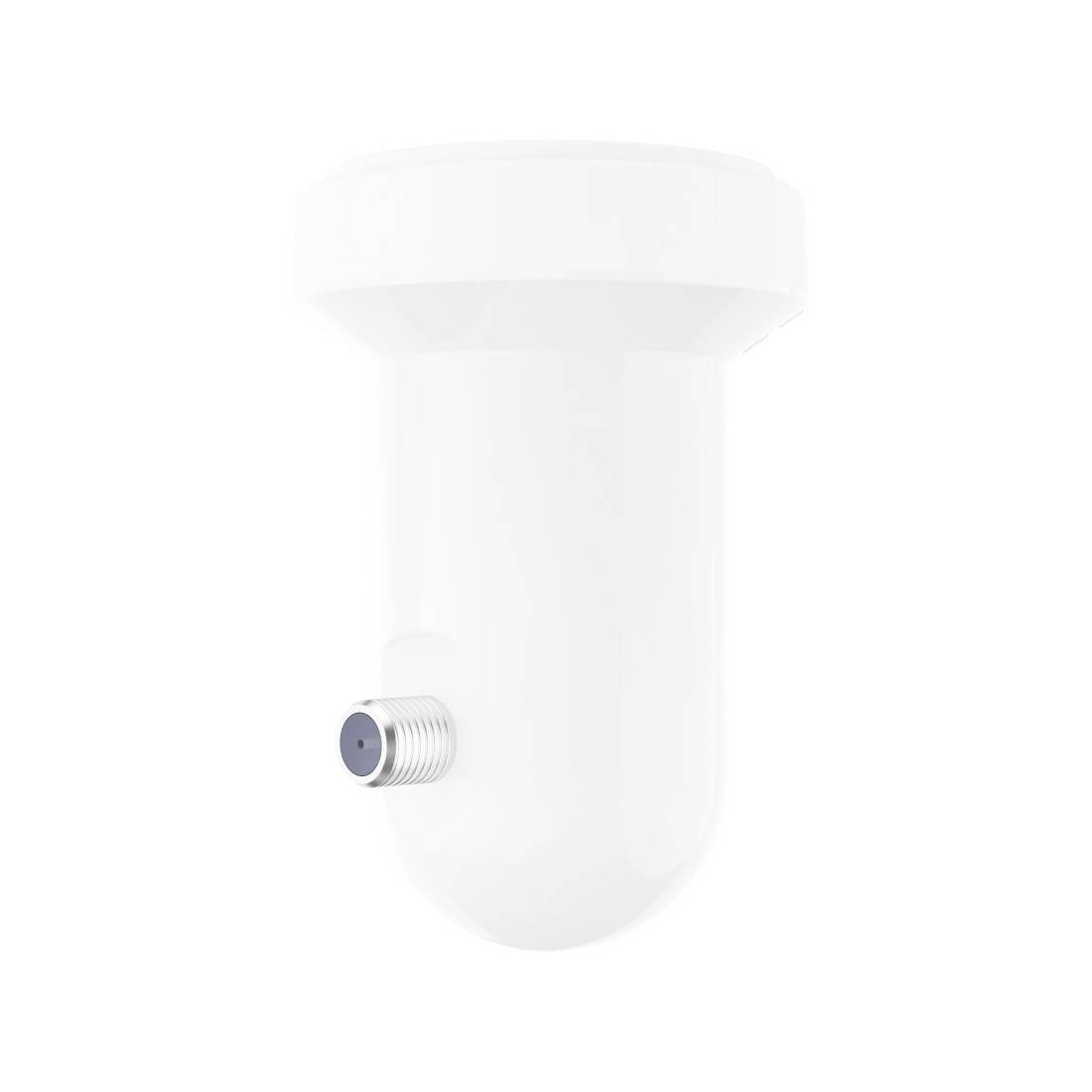

Hama 00205374 Low Noise Signal converter Single LNB 10.7 - 12.75 GHz White

For connection of a digital receiver or a TV with in-built digital receiver
For digital reception of SAT programs, e.g. Astra, Eutelsat or Turksat
For connection of a digital receiver or a TV with in-built digital receiver
Ideal for HD, HD+ Full HD, Ultra HD UHD 4K and 8K
22 kHz switch between low and high band
Weatherproof thanks to weather-proof sleeve

Technical specifications

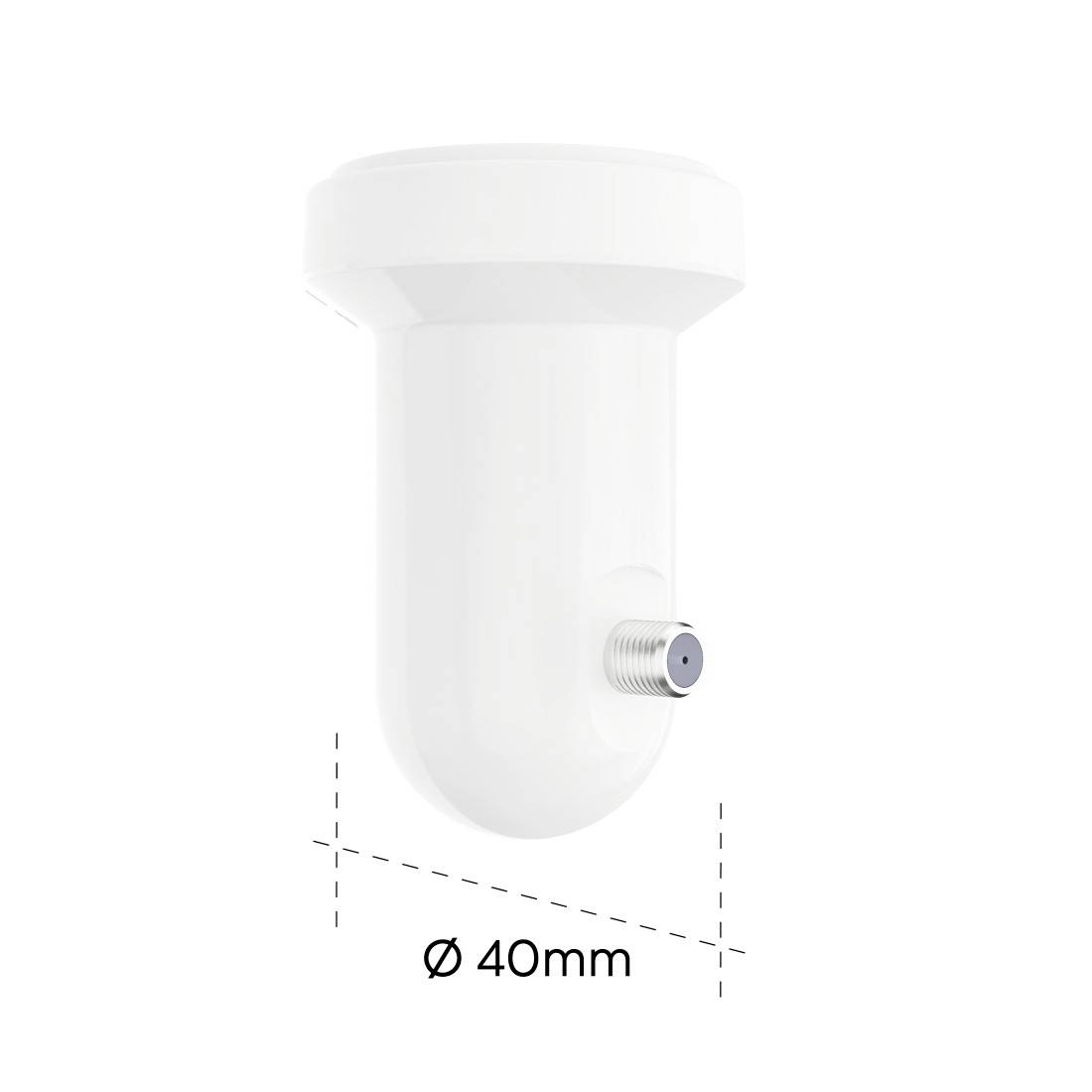

Diameter of feedhorn 4 cm

Product type: Single LNB

No. of outputs: 1 x

Participants: 1

LNB feed size: 40 mm

Factory colour: White

Type: Single LNB

Input frequency range: 10,7 - 12,75 GHz

Gain: 60 dB

Quantity: 1

Conversion gain range: 55 - 67 dB

Supply voltage Ca (vertical polarization): 14 - 18 V

Switching frequency (max): 22 kHz

Colour: yes

Power consumption: 90 mA

Package weight: 105 g

Noise figure: 0.3 dB

Documents & Downloads

Datasheet

Datasheet 3820241 Hama Single LNB No. of participants: 1 LNB feed size: 40 mm White

User & Safety Instructions

User & Safety Instructions 3820241 Hama Single LNB No. of participants: 1 LNB feed size: 40 mm White

Description

For connection of a digital receiver or a TV with in-built digital receiver.

Low noise factor of 0.3 dB

Particularly low noise: The high-quality installed components ensure a very low noise factor of max. 0.3 dB

Connection for 1 receivers

Simply connect: The single-LNB enables an easy connection for a digital receiver

Weather-proof nozzle

Insulation cap against wind and weather: The high-quality weather-proof rubber sleeve protects the connections and provides a constant good transmission quality

This text is machine translated.
