1/5
Hama Twin LNB No. of participants: 2 LNB feed size: 40 mm White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

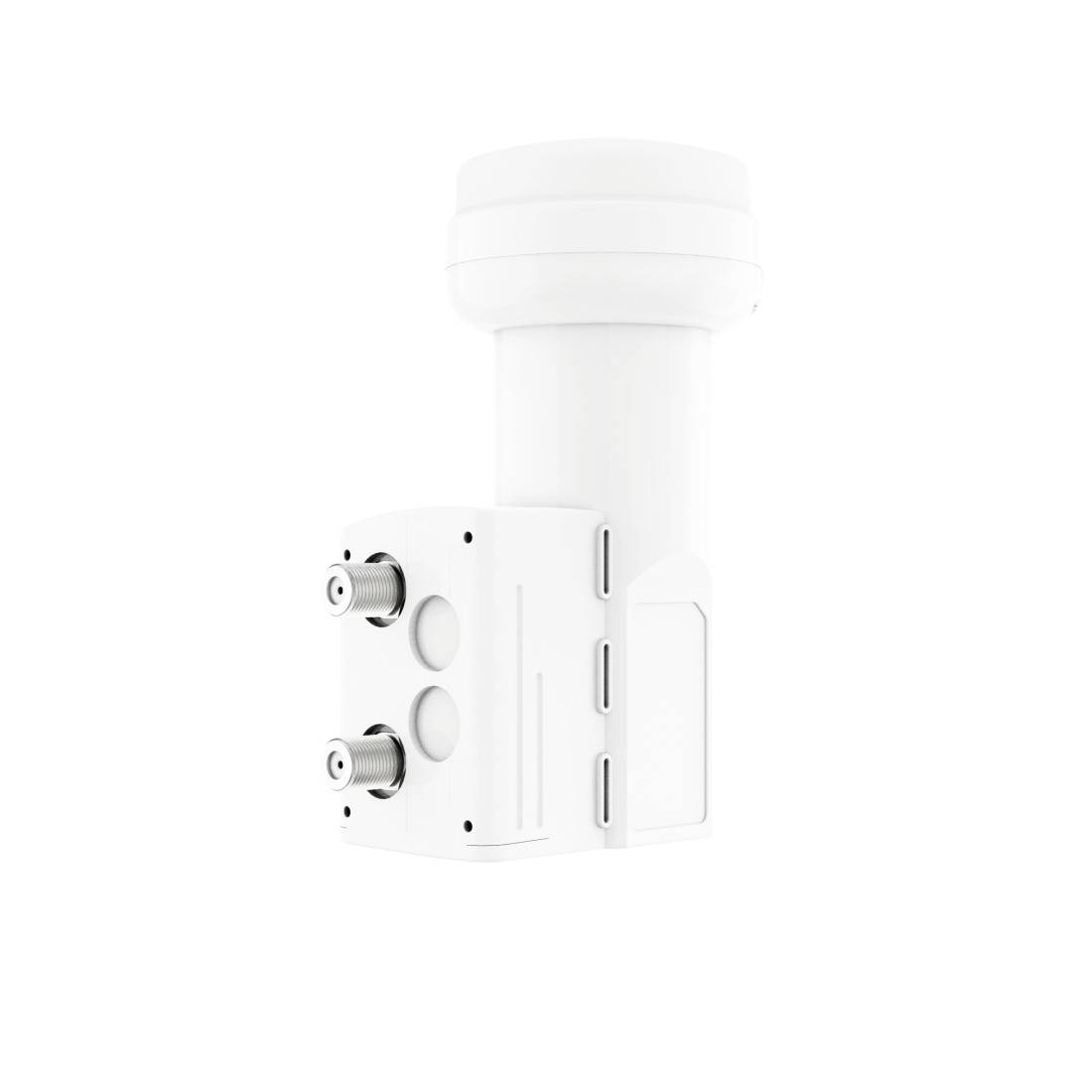

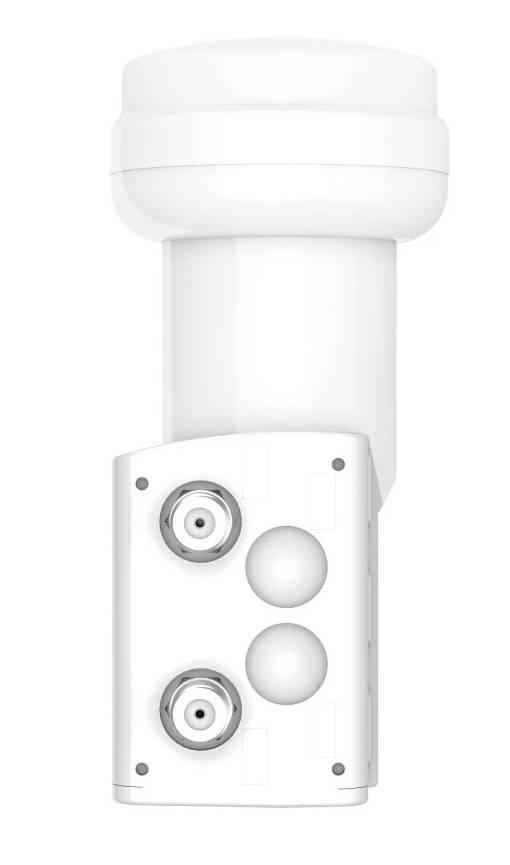

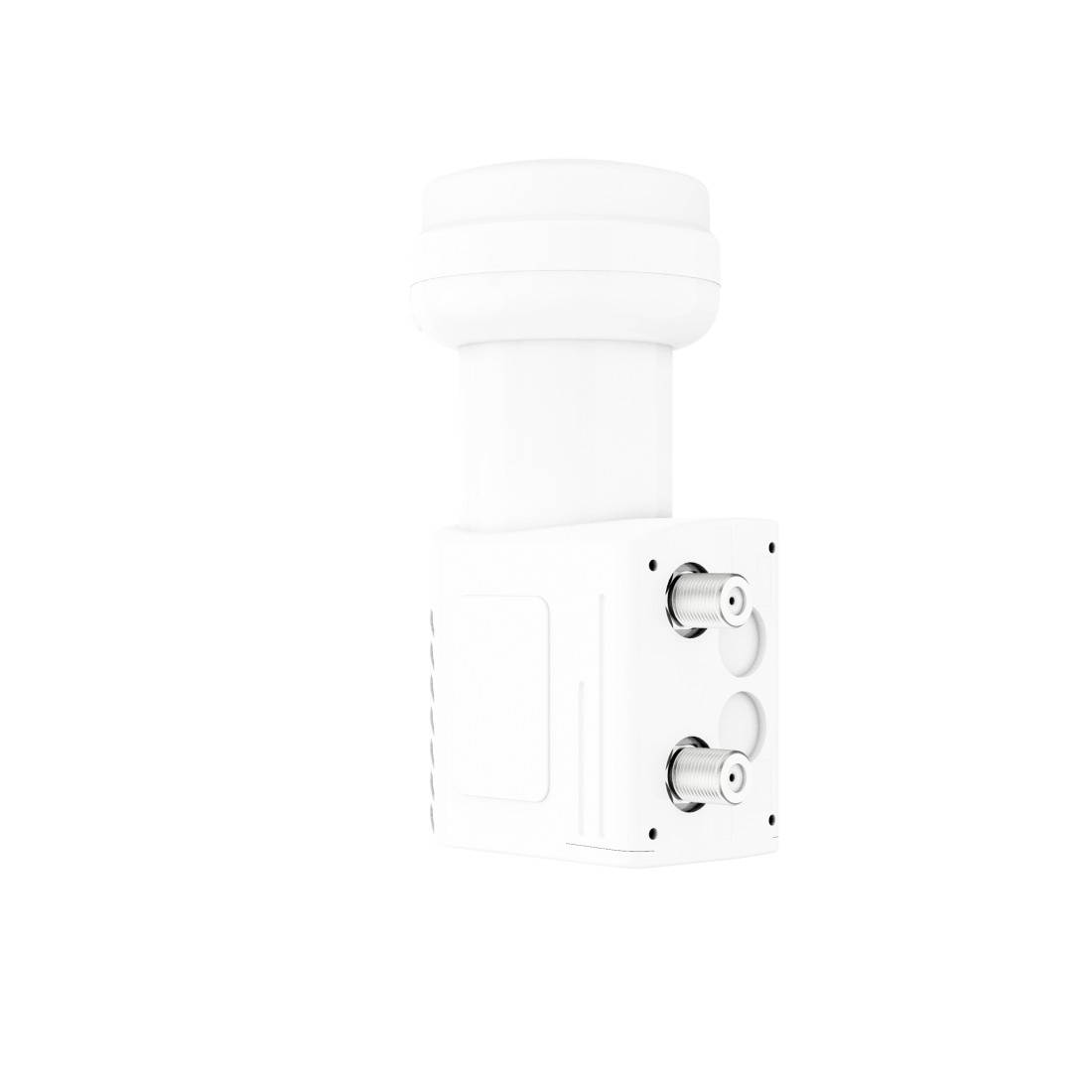

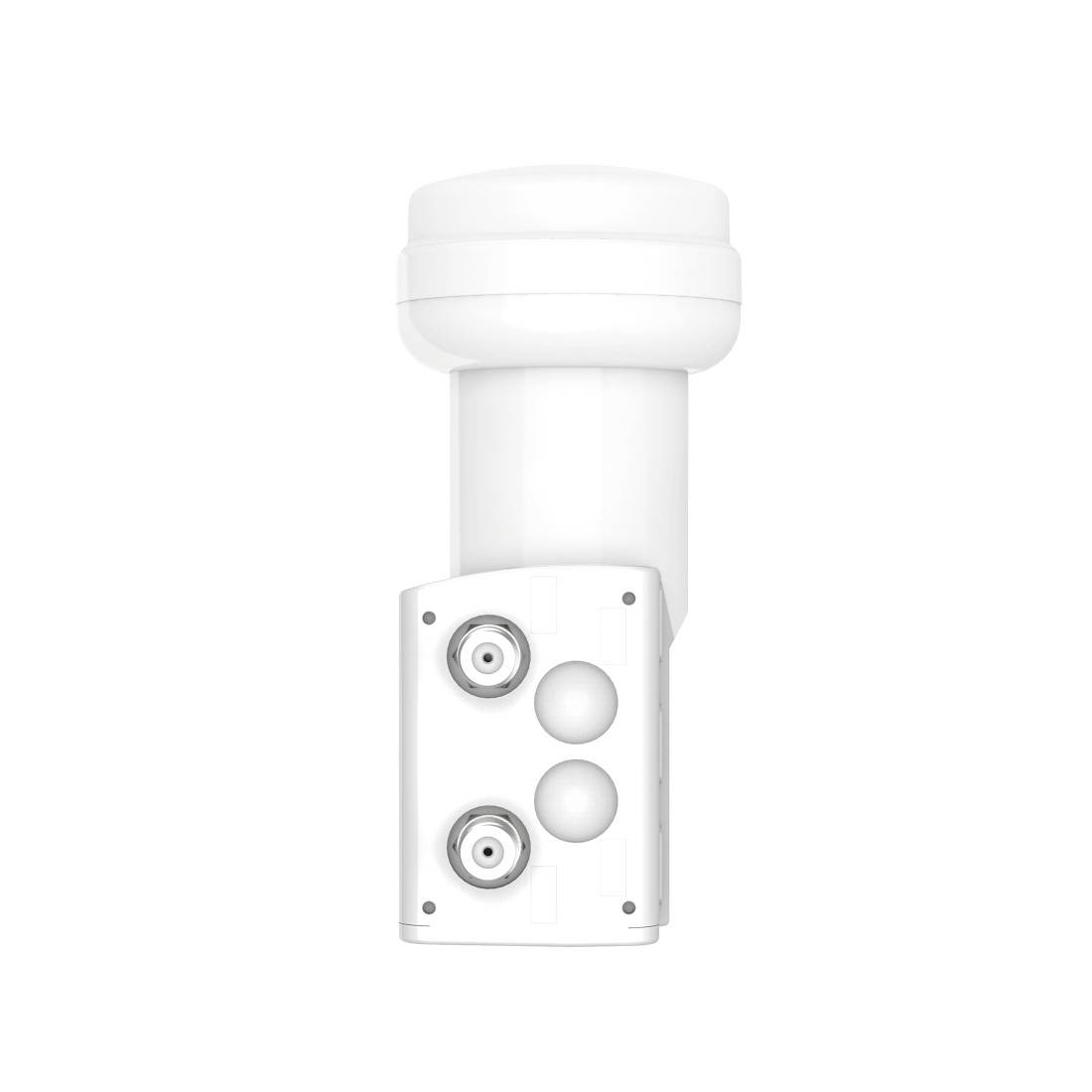

Hama 00205375 Low Noise Signal converter Twin LNB 10.7 - 12.75 GHz White
- Ideal for connecting two digital receivers or TVs with in-built digital receivers
- For digital reception of SAT programs e.g. Astra, Eutelsat or Turksat
- Ideal for HD, HD+ Full HD, Ultra HD UHD 4K and 8K
- 22 kHz switch between low and high band
- Weatherproof owing to the extendable weather protection case
Technical specifications
- Diameter of feedhorn 4 cm
- Product type
Twin LNB
- No. of outputs
2 x
- Participants
2
- LNB feed size
40 mm
- Connector
F socket
- Factory colour
White
- Type
Twin LNB
- Input frequency range
10,7 - 12,75 GHz
- Gain
62 dB
- Quantity
1
- Conversion gain range
56 - 68 dB
- Supply voltage Ca (vertical polarization)
14 - 18 V
- Switching frequency (max)
22 kHz
- Colour
yes
- Power consumption
97 mA
- Package weight
177 g
- Noise figure
0.3 dB
Documents & Downloads
Datasheet
Datasheet 3820242 Hama Twin LNB No. of participants: 2 LNB feed size: 40 mm White
User & Safety Instructions
User & Safety Instructions 3820242 Hama Twin LNB No. of participants: 2 LNB feed size: 40 mm White
Description
Ideal for connecting two digital receivers or TVs with in-built digital receivers.
Low noise factor of 0.3 dB
Particularly low noise: The high-quality installed components ensure a very low noise factor of max. 0.3 dB
Rugged weatherproof housing
Secure protection against wind and weather: The stable weather-proof housing protects the LNB and the connections and provides a constantly good transmission quality
Connection for 2 receivers
Several devices supply: Thanks to the two connections at the twin LNB up to 2 digital receivers can be connected
This text is machine translated.
Low noise factor of 0.3 dB
Particularly low noise: The high-quality installed components ensure a very low noise factor of max. 0.3 dB
Rugged weatherproof housing
Secure protection against wind and weather: The stable weather-proof housing protects the LNB and the connections and provides a constantly good transmission quality
Connection for 2 receivers
Several devices supply: Thanks to the two connections at the twin LNB up to 2 digital receivers can be connected
This text is machine translated.
Features
- Ideal for connecting two digital receivers or TVs with in-built digital receivers
- For digital reception of SAT programs e.g. Astra, Eutelsat or Turksat
- Ideal for HD, HD+ Full HD, Ultra HD UHD 4K and 8K
- 22 kHz switch between low and high bands
- Weatherproof owing to the extendable weather protection case
Scope of delivery
- 1 Universal twin LNB
- 1 operating instructions
