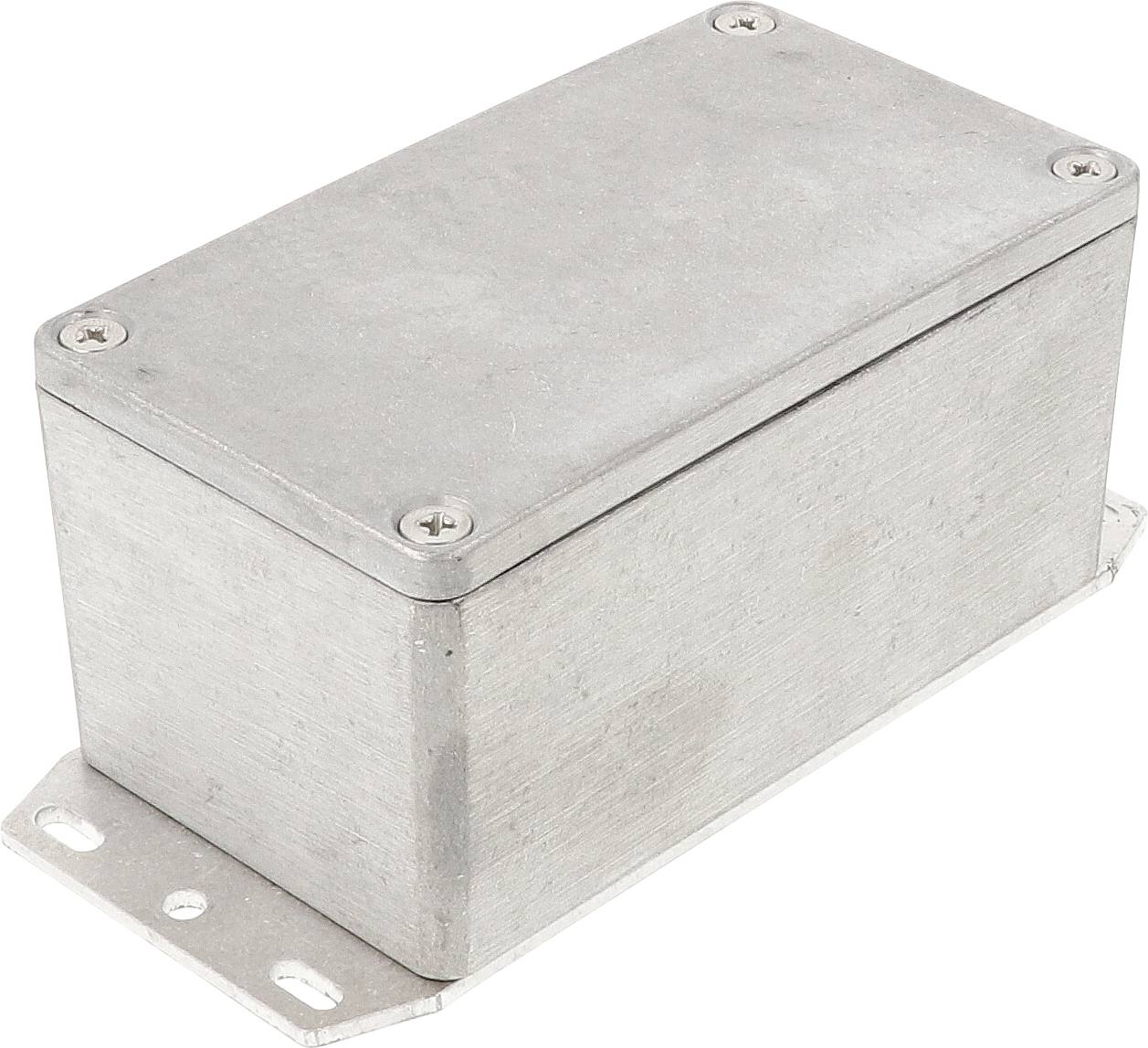

Hammond Electronics 1550Z111F Universal enclosure 115 x 66 x 55 Aluminium (die-cast) Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Aluminium (die-cast)
IP rating
IP66
Width
66 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Thick-walled die-cast housing with flange, 115 x 66 x 55
Our service for you
Technical specifications
- Product type
Universal enclosure
- Features
with flange
waterproof
- Material
Aluminium (die-cast)
IP66
- Factory colour
Aluminium
- Length
115 mm
- Width
66 mm
- Content
1 pc(s)
- Dim
(L x W) 115 mm x 66 mm
- RoHS-compliant
Yes
- Depth
55 mm
- Type
1550Z111F
Documents & Downloads
Datasheet
Datasheet 3341442 Hammond Electronics 1550Z111F Universal enclosure 115 x 66 x 55 Aluminium (die-cast) Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3341442 Hammond Electronics 1550Z111F Universal enclosure 115 x 66 x 55 Aluminium (die-cast) Aluminium 1 pc(s)
Description
Thick-walled, waterproof electronic instrument case made of die-cast aluminum. The robust die-cast aluminum alloy is hard yet easy to work on. Two-part nut and spring construction to protect against the ingress of dust and water. The stable, point-welded floor flange enables an easy mounting. The unpainted version has a vibration finish for a smooth surface without sharp edges. The seal is made of pre-formed, one-part silicone rubber and can be easily inserted in the groove on the lid. The seal is suitable for a temperature range from -40 °C to +150 °C (-40 °F to 302 °F). No internal ribs for easy installation of connectors without interference or additional milling.
