Hammond Electronics 1550Z220F Universal enclosure 223 x 147 x 83 Aluminium (die-cast) Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Aluminium (die-cast)
IP rating
IP66
Width
147 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Universal enclosure
- Features
with flange
waterproof
- Material
Aluminium (die-cast)
IP66
- Factory colour
Aluminium
- Length
223 mm
- Width
147 mm
- Content
1 pc(s)
- Dim
(L x W) 223 mm x 147 mm
- Depth
83 mm
- Type
1550Z220F
Documents & Downloads
Datasheet
Datasheet 3341460 Hammond Electronics 1550Z220F Universal enclosure 223 x 147 x 83 Aluminium (die-cast) Aluminium 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3341460 Hammond Electronics 1550Z220F Universal enclosure 223 x 147 x 83 Aluminium (die-cast) Aluminium 1 pc(s)
Description

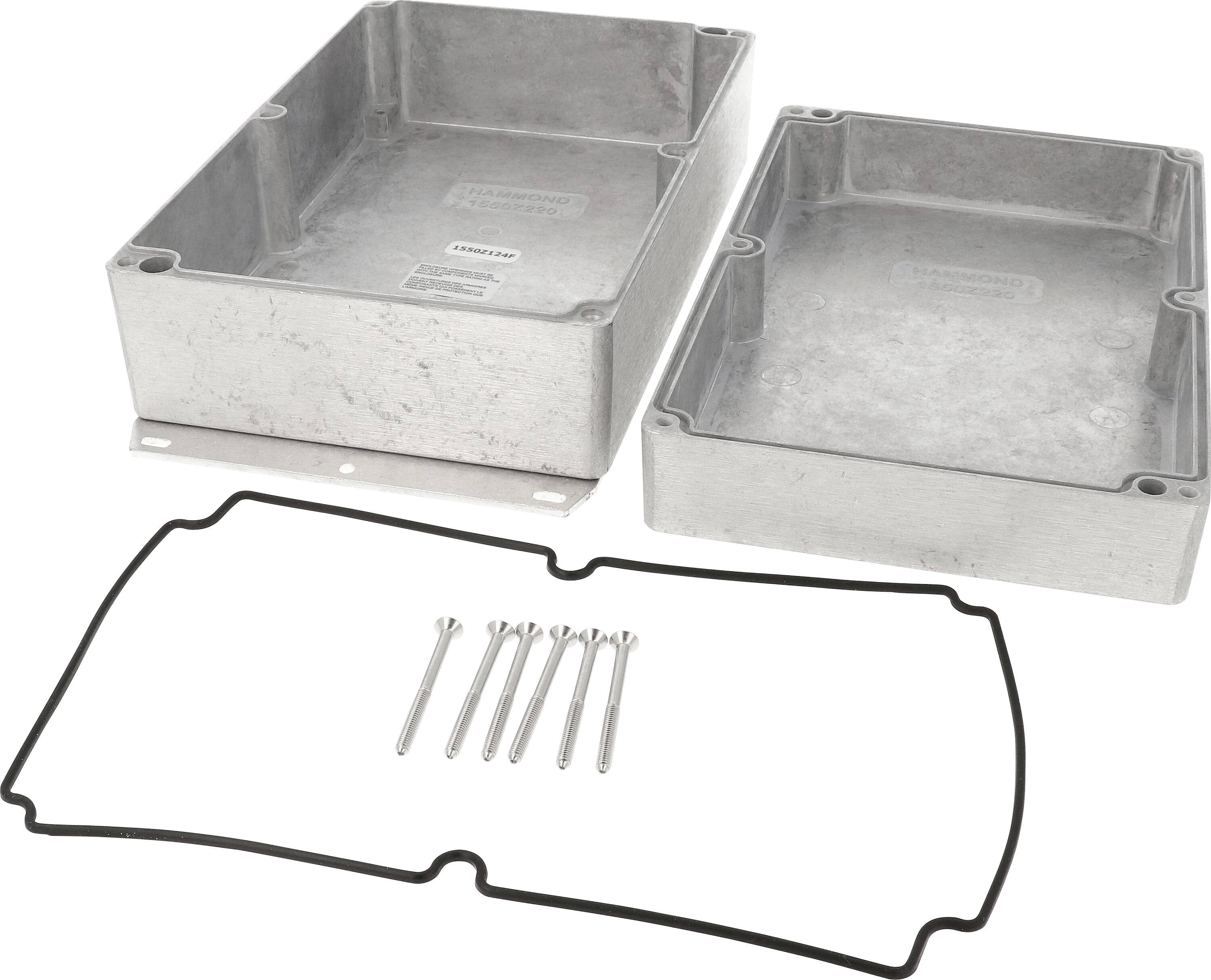

Thick-walled, waterproof electronic instrument case made of die-cast aluminum. The robust die-cast aluminum alloy is hard yet easy to work on. Two-part nut and spring construction to protect against the ingress of dust and water. The stable, point-welded floor flange enables an easy mounting. The unpainted version has a vibration finish for a smooth surface without sharp edges. The seal is made of pre-formed, one-part silicone rubber and can be easily inserted in the groove on the lid. The seal is suitable for a temperature range from -40 °C to +150 °C (-40 °F to 302 °F). No internal ribs for easy installation of connectors without interference or additional milling.
