Handheld Microphone transmitter Relacart UH-222D Transfer type (details):Radio Switch

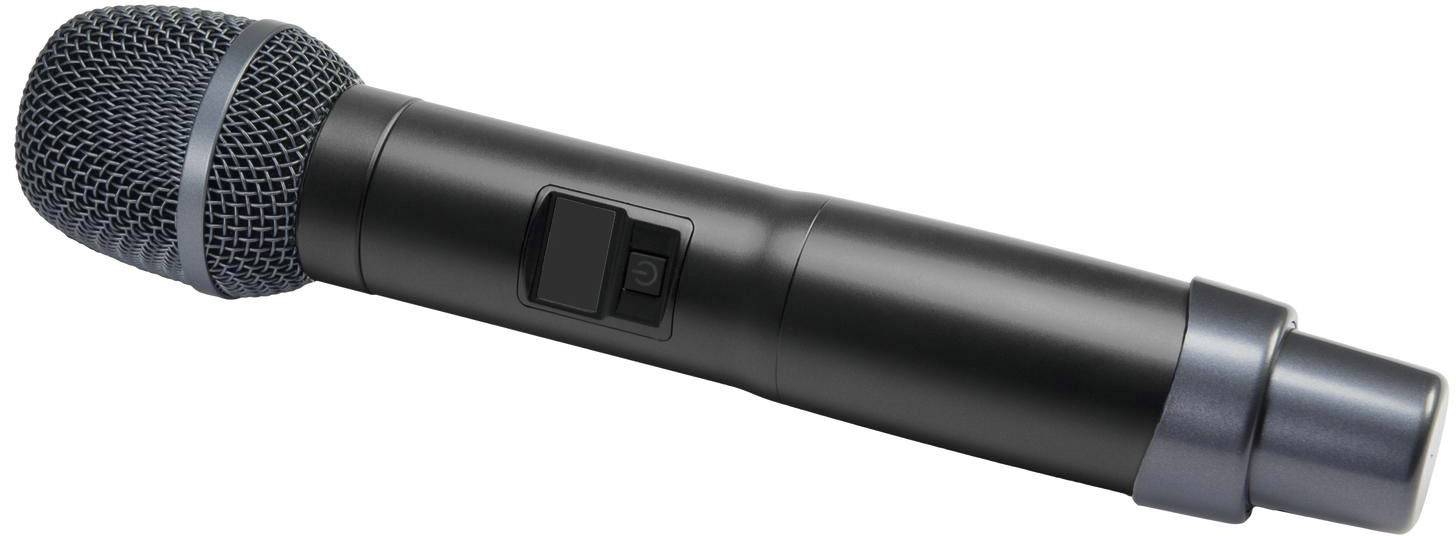

A black handheld microphone with a mesh grille and power switch, suitable for stage and presentation applications.

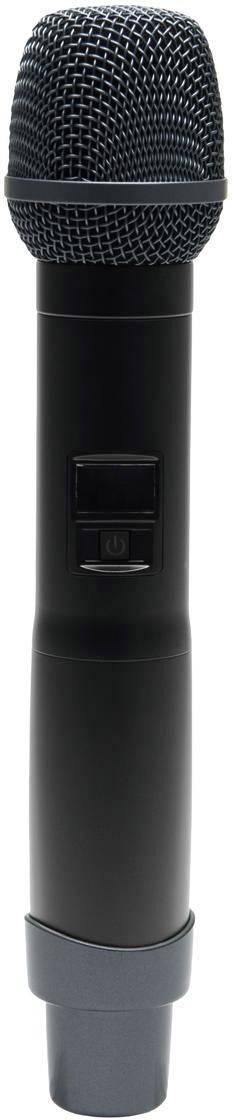

Black wireless microphone with a volume control and power switch, suitable for stage performances or presentations.

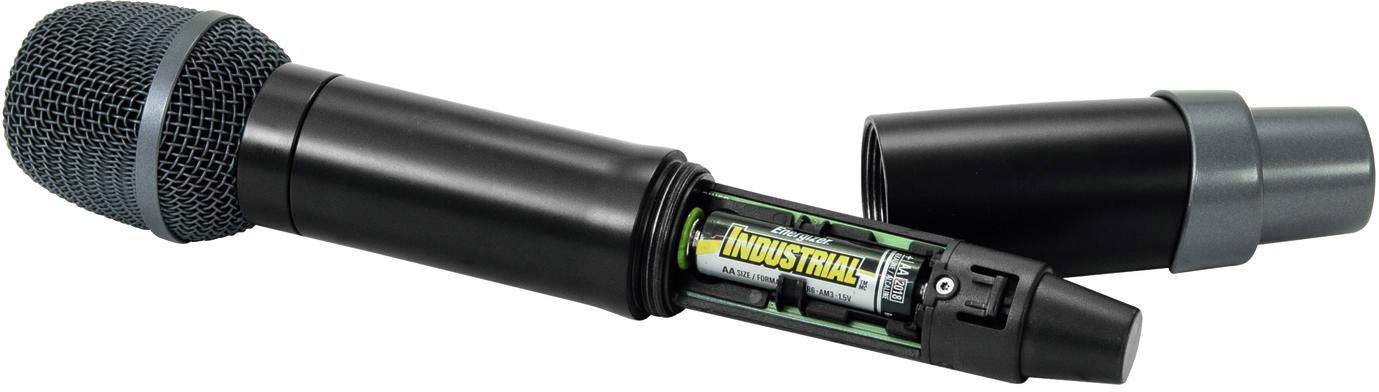

A microphone with its battery compartment cover removed shows a battery inserted, marked with 'Industrial'.
1/3
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

UH-222 D microphone

  • Hand-held microphone with PLL-multi-frequency transmitter
  • Dynamic hand-held microphone with UHF PLL technology (PLL)
  • Ergonomic, aluminiumlegiertes casing, suitable for hard tour use
  • Suitable for the receiver UR-222S

Technical specifications

  • Type: Dynamic directional characteristics: Cardoid 823-832 MHz and 863-865 MHz transmitter carrier frequency: UHF frequencies: 90 10 banks of channels each with up to 10 pre-set channels switching 11 MHz frequency deviation: ±45 kHz bandwidth: Modulation: FM range: 80 m (direct visual contact) Voltage supply: 2 x 1.5 V battery (AA) Power consumption: approx. 120 mA Battery life: approx. 8 hours frequency band: UHF 863 - 865 MHz UHF 823 - 832 MHz frequency band: weight: 0.235 kg Material: aluminum diameter: 5.2 cm Length: 25.5 cm
Product type

Microphone transmitter

Type

Handheld

Transfer type

Radio

Characteristics

Cardioid/unidirectional

Features

Switch

Weight

0.235 kg

Length

25.5 cm

(Ø)

5.2 cm

Dim

(Ø x L) 5.2 cm x 25.5 cm

No. of frequencies (adjustable)

90

No. of transmitters

1

80 m

Frequency

863 - 865 MHz

823 - 832 MHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1876904 Handheld Microphone transmitter Relacart UH-222D Transfer type (details):Radio Switch

Description

UH-222D microphone;

This text is machine translated.

Features

  • 2 Registration-free frequency ranges: 823-832 MHz (duplex gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Infrared interface for fast and error-free synchronization with the receiver via radio signal.
  • Range of sight contact approx. 80 meters
  • OLED-display for battery capacity, frequency and channel
  • Mute button
  • Hi/Low Transmitter power can be set
  • Fully compatible with the SM58 capsule of Shure
  • Power supply via 2 x 1.5 V battery (AA), not including
  • Free registration and in large parts of the EU (duplex gap please check country-specific)
  • On/Off/mute switch: Yes
  • Directional characteristics: kidney.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
