HARTING 09 45 551 1141 Socket 09455511141 Socket No. of pins (RJ) 8 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
RJ45 connector
Connector type
Socket
No. of pins
8
Specification
1 Gbps
Datasheet (PDF)
Technical specifications
- Series: Harting RJ INDUSTRIAL®
- Component: Jack
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 8
- Rated current 1.5 A
- INSULATION RESISTANCE >1000 MΩ @ 500 VDC
- Continuous resistance ≤ 45 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 750
- Net weight: 7.333 g
- Rated voltage 125 V AC
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s.

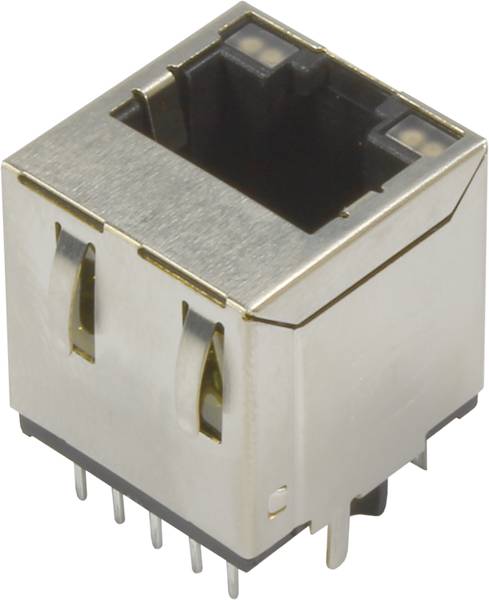

- Description: RJ45; with bicolor LED; vertical; with shield spring; with integrated transformer
- Shielding: Fully shielded, 360° shield contact
- Protection class according to IEC 60529:IP20
- Approvals DNV GL
- Breakdown voltage ≤ 1.5 kV
- Packaging type
Piece
- Type
09 45 551 1141
- Product type
RJ45 connector
- Connector type
Socket
- No. of pins
8
1 Gbps
- Connector standard
RJ45
- Connection
THR
- Type A
Soldering
- Type B
RJ45
- Weight
7.333 g
- Content
1 pc(s)
- Features
shielded housing
- Max. temperature
85 °C
- Min. temperature
-40 °C
Other
8
Other
-40-85 °C
Other
Soldering connection
Other
Other
Other
Other
Documents & Downloads
Datasheet
Datasheet 3009501 HARTING 09 45 551 1141 Socket 09455511141 Socket No. of pins (RJ) 8 1 pc(s)
Datasheet 3009501 HARTING 09 45 551 1141 Socket 09455511141 Socket No. of pins (RJ) 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3009501 HARTING 09 45 551 1141 Socket 09455511141 Socket No. of pins (RJ) 8 1 pc(s)
Description
Jack, RJ45, with bicolor LED, vertical, with shield spring, with integrated transformer, reflow soldering connection (THR), contacts: 8
This text is machine translated.
This text is machine translated.
What kind of RJ Connectors are you looking for?

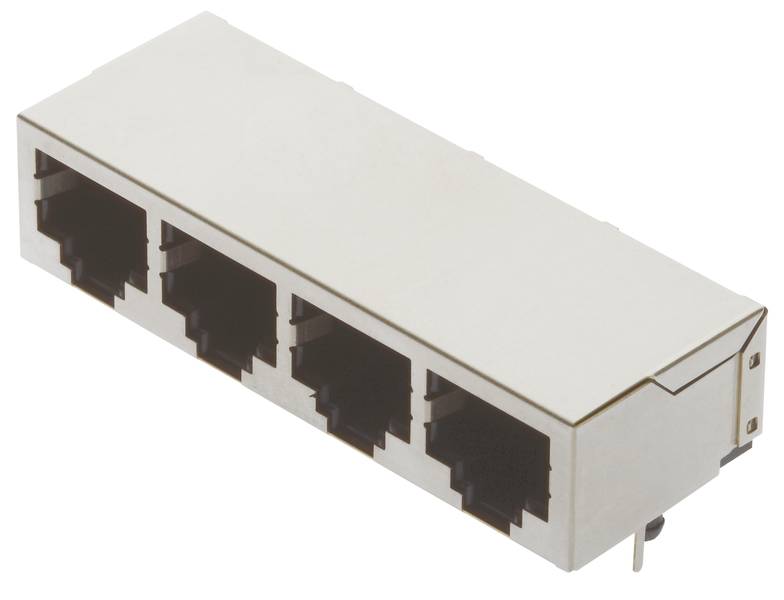

Accessories
