HARTING 09 45 551 1165 HARTING 09 45 551 1165 N/A 09455511165 right angle No. of pins (RJ) 8 1 pc(s) 09455511165 right a
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
RJ45 connector
Connector type
right angle
No. of pins
8
Specification
100 Mbps
Datasheet (PDF)
Technical specifications
- Series: Harting RJ INDUSTRIAL®
- Component: Jack
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 8
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 750
- Net weight: 7.1 g
- Description: Magnetics
- Rated voltage 60 V DC
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Description: RJ45; with integrated transformer; with bicolor LED; angled
- Shielding: Fully shielded, 360° shield contact
- Protection class according to IEC 60529:IP20
- Approvals DNV GL
- Packaging type
Piece
- Type
09 45 551 1165
- Product type
RJ45 connector
- Connector type
right angle
- No. of pins
8
100 Mbps
- Connector standard
RJ45
- Connection
THR
- Type A
Soldering
- Type B
RJ45
- No. of ports
8 x
- Weight
7.1 g
- Content
1 pc(s)
- Features
+ LED display
- Max. temperature
85 °C
- Min. temperature
-40 °C
Other
8
Other
-40-85 °C
Other
Soldering connection
Other
Other
Other
Other
Documents & Downloads
Datasheet
Datasheet 3009519 HARTING 09 45 551 1165 HARTING 09 45 551 1165 N/A 09455511165 right angle No. of pins (RJ) 8 1 pc(s) 09455511165 right a
Datasheet 3009519 HARTING 09 45 551 1165 HARTING 09 45 551 1165 N/A 09455511165 right angle No. of pins (RJ) 8 1 pc(s) 09455511165 right a
User & Safety Instructions
User & Safety Instructions 3009519 HARTING 09 45 551 1165 HARTING 09 45 551 1165 N/A 09455511165 right angle No. of pins (RJ) 8 1 pc(s) 09455511165 right a
Description

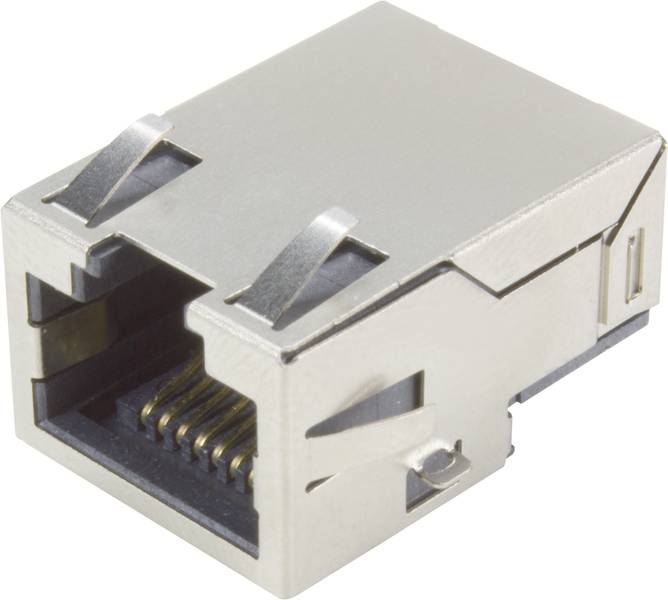

Socket, RJ45, with integrated transformer, with bicolor LED, angled, Reflow solder connection (THR), contacts: 8
This text is machine translated.
This text is machine translated.
