HARTING 09 55 156 6612 741 09551566612741 Connector Number of pins: 9 SMT 140 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Socket, right angle
Number of pins
9
Connection
SMT
Content
140 pc(s)
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 9
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Punched;angled
- Connection type: Reflow soldering connection (SMT)
- Type of connection: Motherboard to Daughtercard
- Number of contacts: 9
- Locking type: Flange with thread 4-40 UNC
- Pitch, connection side 2.76 mm
- Rated current 5 A
- Insulation resistance > 5 x 109 Ω
- Continuous resistance ≤ 25 mΩ
- Temperature limit: -55 ... +125 °C (Max. For reflow soldering +240 °C for 30 s)
- Mating cycles ≥ 250
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP); shell: Steel, nickel-plated
- Colour insert: Black
- Material contacts: Copper alloy; mass: Zinc die cast
- Contact surface: Precious metal over Ni
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 2,730 g
- Designation: Default
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- Moisture Sensitivity Level (MSL): 1 according to ECA/IPC/JEDEC J-STD-020D
- Process Sensitivity Level (PSL): R0 according to ECA/IPC/JEDEC J-STD-020D
- Hot plugging: No.
- Circuit board thickness ≥1.6 mm
- Plug-in force ≤ 30 N
- Pull force: ≥ 3.3 N;≤ 20 N
- Gender: Jack
- Tightening torque: ≤0.6 Nm screw bolts
- Size D-Sub 1
- Installation height: 7.3 mm
- Type
D-Sub
- Product type
Connector
- Connector type
Socket, right angle
- Number of pins
9
- Connection
SMT
- Content
140 pc(s)
- Mating cycles
≥ 250
- Manufacturer part #
09551566612741
- Factory colour
Black
- Contact type
Punched contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- CS
2.76 mm
- Features
L-shaped
- Type
09 55 156 6612 741
Plug/bus
9
Documents & Downloads
Datasheet
Datasheet 3004455 HARTING 09 55 156 6612 741 09551566612741 Connector Number of pins: 9 SMT 140 pc(s)
Datasheet 3004455 HARTING 09 55 156 6612 741 09551566612741 Connector Number of pins: 9 SMT 140 pc(s)
User & Safety Instructions
User & Safety Instructions 3004455 HARTING 09 55 156 6612 741 09551566612741 Connector Number of pins: 9 SMT 140 pc(s)
Description

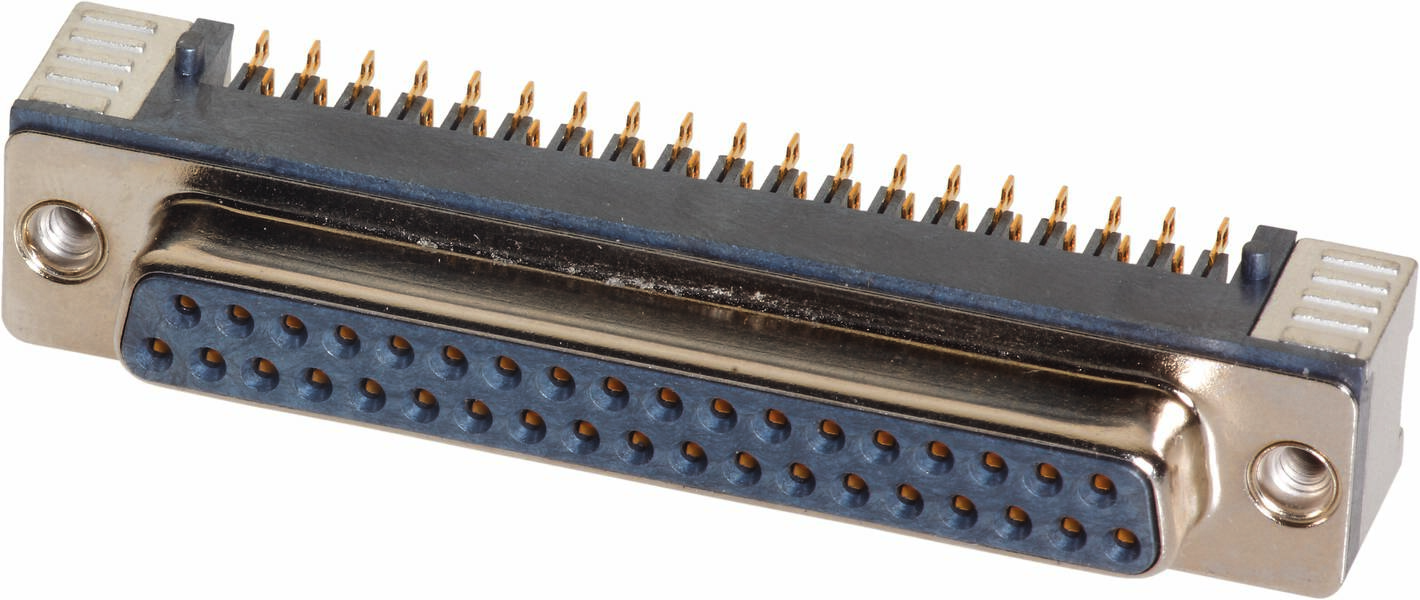

Plug connector, reflow soldering connection (SMT), rated current 5 A, bushing, size: D-sub 1, Liquid-crystal polymer (LCP), shell: steel, nickel-plated
