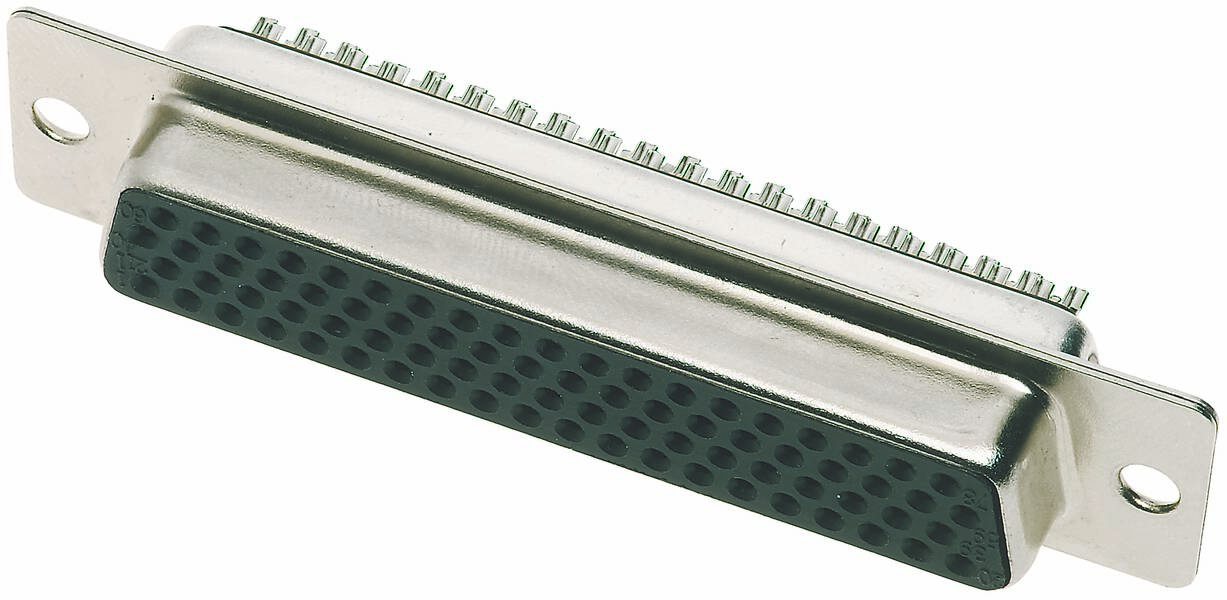

HARTING 09 56 400 4704 09564004704 Connector Number of pins: 62 Solder bucket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connector type
Socket, straight
Number of pins
62
Connection
Solder bucket
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 62
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Punched;straight
- Connection type: Solder cup connection
- Number of contacts: 62
- Locking type: Flange with passage hole Ø 3.1 mm
- Rated current 2 A
- Insulation resistance > 5 x 109 Ω
- Constant resistance < 20 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 50
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Thermoplastic molding material, glass fiber reinforced (PBTP);Shell: Steel, nickel plated
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 15.62 g
- Designation: High density
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- Hot plugging: No.
- Gender: Jack
- Wire cross-section AWG 24
- Size D-Sub 4
- Packaging type
Piece
- Type
D-Sub
- Product type
Connector
- Connector type
Socket, straight
- Number of pins
62
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
≥ 50
- Manufacturer part #
09564004704
- Factory colour
Black
- Contact type
Punched contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- Features
+ clearance hole
- Type
09 56 400 4704
Plug/bus
62
Documents & Downloads
Datasheet
Datasheet 3004047 HARTING 09 56 400 4704 09564004704 Connector Number of pins: 62 Solder bucket 1 pc(s) Piece
Datasheet 3004047 HARTING 09 56 400 4704 09564004704 Connector Number of pins: 62 Solder bucket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3004047 HARTING 09 56 400 4704 09564004704 Connector Number of pins: 62 Solder bucket 1 pc(s) Piece
Description
Plug connector, solder cup connection, rated current: 2 A, jack, size: D-Sub 4
