HARTING 09 67 009 0437 09670090437 Shell Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Shielded
Yes
Manufacturer part #
09670090437
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Type of locking: Screw lock
- Net weight: 13.46 g
- Shielding: shielded
- Protection class according to IEC 60529:IP67
- Tightening torque: 0,4 Nm fixing screws;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- Housing series D-Sub IP67
- Material housing: Plastic
- Surface of casing: Metallized
- Cable diameter: 6 ... 8 mm
- Length 41 mm.
- Width 33.6 mm
- Height: 15.6 mm
- 2-part: no.
- divisible: no.
- Ambient temperature: -25 ... +70 °C
- Cable fixing: Cable clip
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
09670090437
- Cable Ø (max.)
8 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 8 mm
- Width
33.6 mm
- Height
15.6 mm
- Length
41 mm
- Features
+ screw lock
- Type
09 67 009 0437
IP67
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003674 HARTING 09 67 009 0437 09670090437 Shell Plastic 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003674 HARTING 09 67 009 0437 09670090437 Shell Plastic 1 pc(s)
Description

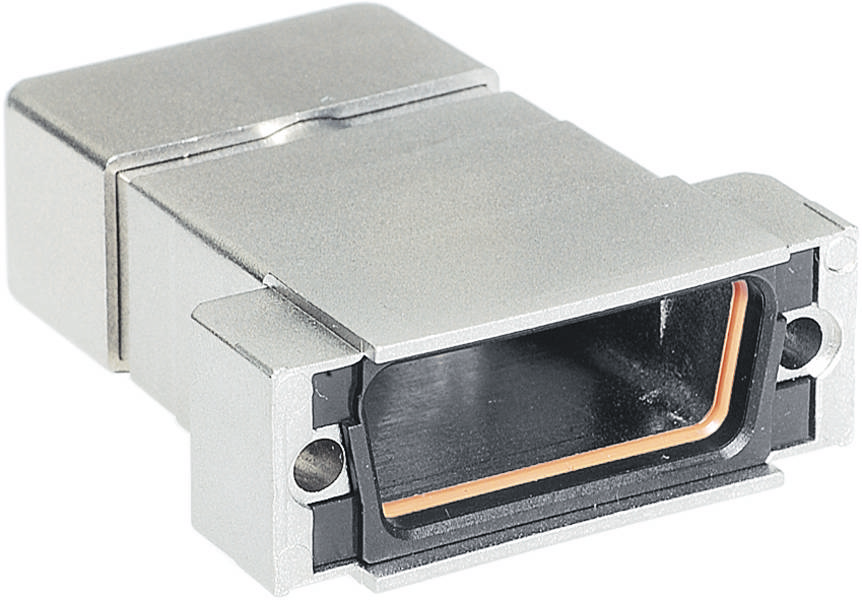

Shell housing, size: D-Sub 1, screw locking, straight cable input, 1x, Material housing: plastic, metallized, protection class IP67
