HARTING 09 67 009 0439 09670090439 Shell Plastic 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670090439
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking screw thread M3
- Net weight: 18.36 g
- Protection class according to IEC 60529:IP67
- Housing description: With integrated cable gland
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- Housing series D-Sub IP67
- Material housing: Plastic
- Colour of housing: Black
- Cable diameter: 6 ... 8 mm
- Length: 57.5 mm.
- Width 39.8 mm
- Height: 20.2 mm
- 2-part: no.
- divisible: no.
- Ambient temperature: -35 ... +120 °C
- Cable fixing: Cable clamp;cable screwing
- Packaging type
Piece
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670090439
- Cable Ø (max.)
8 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 8 mm
- Width
39.8 mm
- Height
20.2 mm
- Length
57.5 mm
- Features
+ cable gland
- Type
09 67 009 0439
IP67
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003857 HARTING 09 67 009 0439 09670090439 Shell Plastic 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003857 HARTING 09 67 009 0439 09670090439 Shell Plastic 1 pc(s) Piece
Description

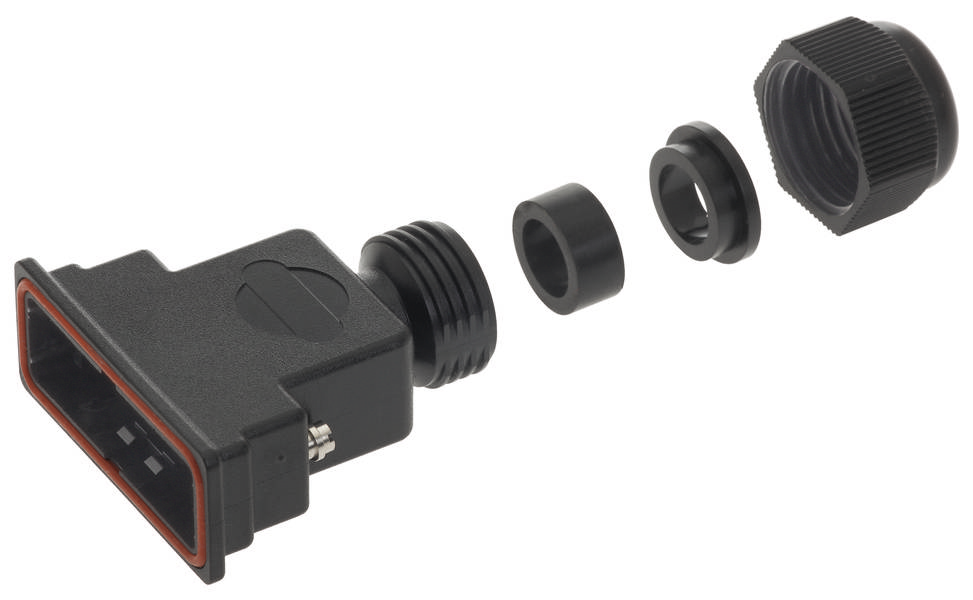

Shell housing, with integrated cable gland, size: D-Sub 1, screw thread M3, straight cable input, 1x
