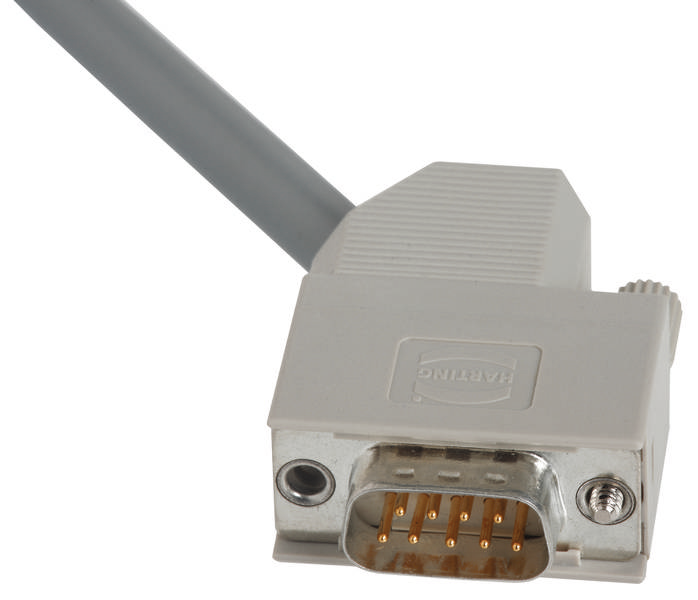

HARTING 09 67 009 0571 09670090571 Shell Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670090571
Cable Ø (max.)
8 mm
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking type: For knurled screws
- Net weight: 14 g
- Tips: Order knurled screw separately.;Can be aligned in 3 TE (15.24 mm) pitch
- Housing description: Cover can be locked
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 1
- Housing type: Shell housing
- Design: Side cable input
- Cable input 1x
- D-Sub case series
- Material housing: Plastic
- Colour of housing: RAL 7032 (pebble gray)
- Cable diameter: 4 ... 8 mm
- Length: 38.15 mm
- Width: 31.3 mm
- Height: 1.8" (14.8 mm)
- 2-part: yes
- divisible: yes
- Ambient temperature: -30 ... +100 °C
- Cable fixing: Cable clip
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670090571
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 8 mm
- Width
31.3 mm
- Height
14.8 mm
- Length
38.15 mm
- Features
+ hinged cover
- Type
09 67 009 0571
Screw
Angled
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003696 HARTING 09 67 009 0571 09670090571 Shell Plastic 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003696 HARTING 09 67 009 0571 09670090571 Shell Plastic 1 pc(s)
Description
Shell housing, lockable cover, size: D-Sub 1, for knurled screws, side cable input, 1x, material housing: plastic
