HARTING 09 67 015 0439 09670150439 Shell Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670150439
Cable Ø (max.)
8 mm
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking screw thread M3
- Net weight: 24.9 g
- Protection class according to IEC 60529:IP67
- Housing description: With integrated cable gland
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 2
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- Housing series D-Sub IP67
- Material housing: Plastic
- Colour of housing: Black
- Cable diameter: 6 ... 8 mm
- Length: 58 mm
- Width 48.8 mm
- Height: 20.2 mm
- 2-part: no.
- divisible: no.
- Ambient temperature: -35 ... +120 °C
- Cable fixing: Cable clamp;cable screwing
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670150439
- Cable Ø (max.)
8 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 8 mm
- Width
48.8 mm
- Height
20.2 mm
- Length
58 mm
- Features
+ cable gland
- Type
09 67 015 0439
IP67
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3003859 HARTING 09 67 015 0439 09670150439 Shell Plastic 1 pc(s)
Description

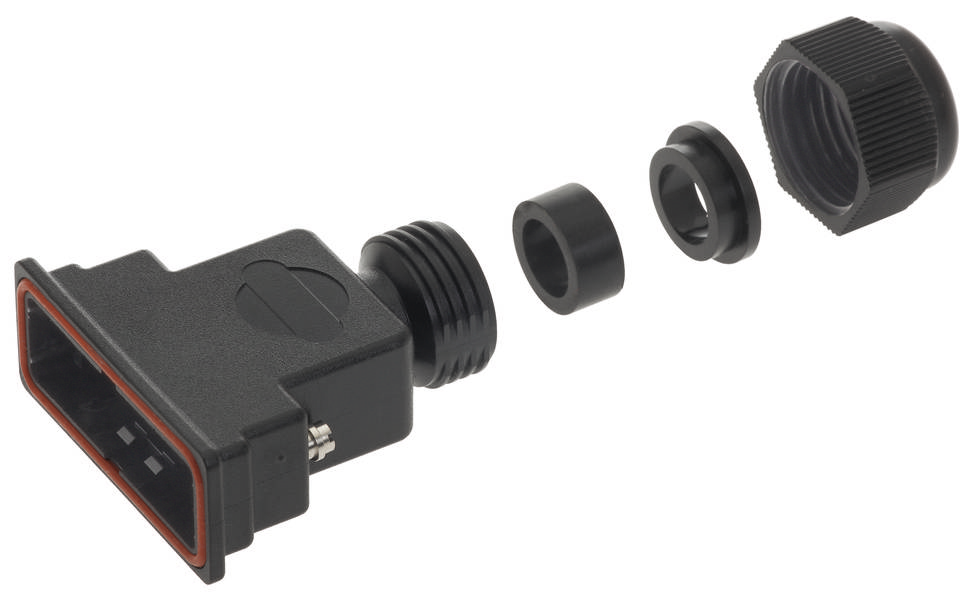

Shell housing, with integrated cable gland, size: D-Sub 2, screw thread M3, straight cable input, 1x
