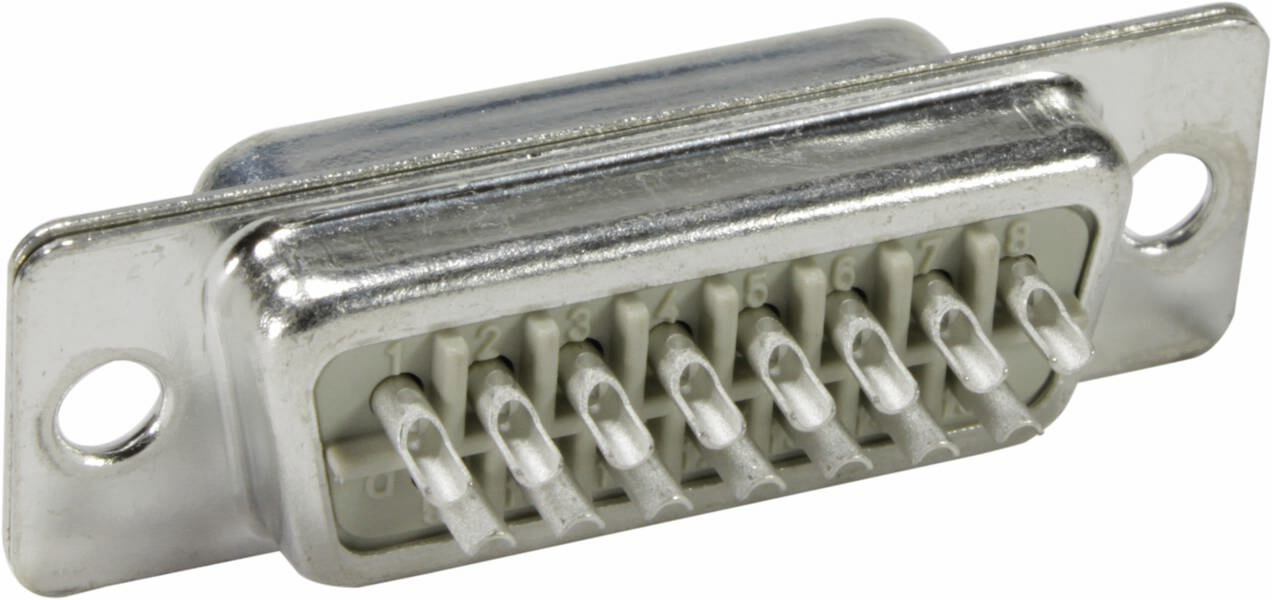

HARTING 09 67 015 5604 09670155604 Connector Number of pins: 15 Solder bucket 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug, straight
Number of pins
15
Connection
Solder bucket
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 15
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Rotated;straight
- Connection type: Solder cup connection
- Type of connection: Circuit board to cable; cable to cable
- Number of contacts: 15
- Locking type: Flange with passage hole Ø 3.1 mm
- Rated current 7.5 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -55 ... +125 °C (Soldering iron temperature: Max. 350 °C for 3-5 s)
- Mating cycles ≥ 50
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Thermoplastic molding material, glass fiber reinforced (PBTP);Shell: Steel, tin plated
- Colour insert: White
- Material contacts: Copper alloy
- Contact surface: Precious metal over Ni
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 7.27 g
- Designation: Default
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- Hot plugging: No.
- Plug-in force ≤ 50 N
- Pull force: ≥ 4.5 N;≤ 33 N
- Gender: Pen
- Wire cross-section AWG 20
- Stripping length: 2.5 ... 3 mm
- Size D-Sub 2
- Type
D-Sub
- Product type
Connector
- Connector type
Plug, straight
- Number of pins
15
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
≥ 50
- Layout
15 signal pins
- Manufacturer part #
09670155604
- Factory colour
White
- Contact type
Machined contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- Features
+ clearance hole
- Type
09 67 015 5604
Plug/bus
15
Documents & Downloads
Datasheet
Datasheet 3004151 HARTING 09 67 015 5604 09670155604 Connector Number of pins: 15 Solder bucket 1 pc(s)
Datasheet 3004151 HARTING 09 67 015 5604 09670155604 Connector Number of pins: 15 Solder bucket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3004151 HARTING 09 67 015 5604 09670155604 Connector Number of pins: 15 Solder bucket 1 pc(s)
Description
Plug connector, solder cup connection, rated current: 7.5 A, pin, size: D-Sub 2
