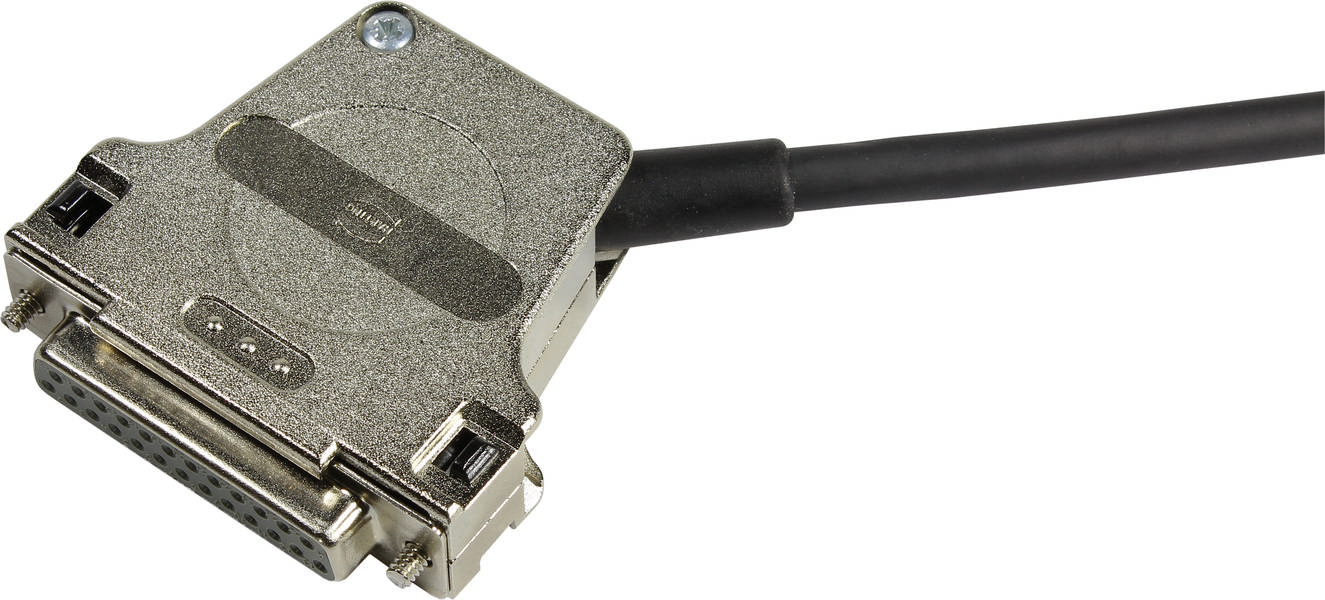

HARTING 09 67 025 0334 280 09670250334280 Shell Metal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Metal
Content
1 pc(s)
Manufacturer part #
09670250334280
Width
54 mm
Datasheet (PDF)
Highlights & Details
Shell housing
- Metal
Technical specifications
- Locking type: With short locking screws thread 4-40 UNC
- Net weight: 72.3 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cover screw;0,4 Nm cable clamping screw
- Size D-Sub 3
- Housing type: Shell housing
- Design: Side cable input
- Cable input 1x
- D-Sub case series
- Material housing: Metal
- Cable diameter: 3 ... 12.5 mm
- Length 45 mm.
- Width 54 mm
- Height: 15.4 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -35 ... +100 °C
- Cable fixing: Cable clamp;Kink protection sleeve ≤ 8 mm
- Product type
Shell
- Case material
Metal
- Content
1 pc(s)
- Manufacturer part #
09670250334280
- Width
54 mm
- Height
15.4 mm
- Length
45 mm
- Type
09 67 025 0334 280
Screw
Angled
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3005896 HARTING 09 67 025 0334 280 09670250334280 Shell Metal 1 pc(s)
Datasheet 3005896 HARTING 09 67 025 0334 280 09670250334280 Shell Metal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3005896 HARTING 09 67 025 0334 280 09670250334280 Shell Metal 1 pc(s)
Description
Shell housing, screw-in cover, size: D-Sub 3, with short locking screws thread 4-40 UNC, side cable input, 1x
