HARTING 09 67 025 0452 09670250452 Shell Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670250452
Cable Ø (max.)
7 mm
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Type of lock: Lever or slide lock
- Net weight: 15.35 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,3 Nm cable clamping screw;0,25 Nm cover screw;0,4 Nm locking screw
- Size D-Sub 3
- Housing type: Shell housing
- Design: Straight/side cable input
- Cable input: 3x
- D-Sub case series
- Material housing: Plastic
- Colour of housing: Black
- Cable diameter: 3 ... 7 mm
- Length: 40 mm
- Width 53.2 mm
- Height: 15.4 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -20 ... +90 °C
- Cable fixing: Cable clip
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670250452
- Cable Ø (max.)
7 mm
- Cable Ø up to
3 mm
- Cable Ø range
3 - 7 mm
- Width
53.2 mm
- Height
15.4 mm
- Length
40 mm
- Features
+ screw lock
- Type
09 67 025 0452
Slide
Other
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003809 HARTING 09 67 025 0452 09670250452 Shell Plastic 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003809 HARTING 09 67 025 0452 09670250452 Shell Plastic 1 pc(s)
Description

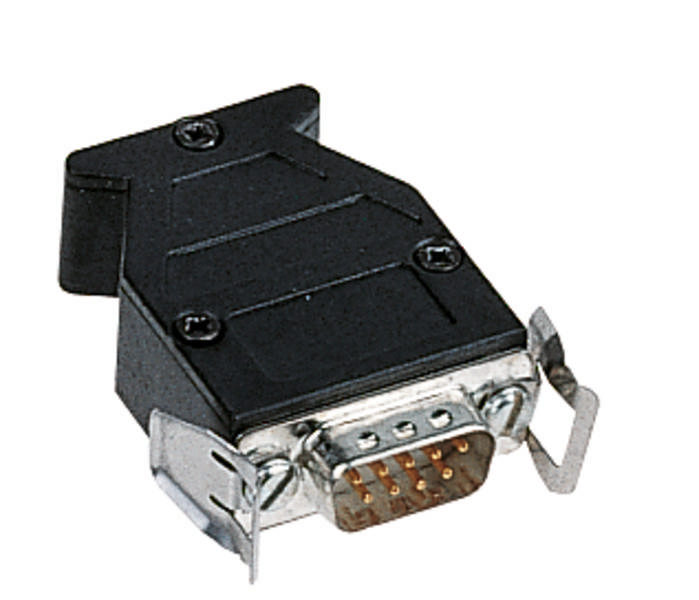

Shell housing, screw-in cover, size: D-Sub 3, lever or slide lock, straight/side cable input, 3x
