HARTING 09 67 037 0413 09670370413 Shell Plastic 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Shielded
Yes
Datasheet (PDF)
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Type of lock: Lever or slide lock
- Net weight: 19 g
- Notes: Can be aligned in 3 TE (15.24 mm) grid
- Shielding: shielded
- Tightening torque: 0,25 Nm cable clamping screw;0,4 Nm fixing screws
- Size D-Sub 4
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- D-Sub case series
- Material housing: Plastic
- Surface of casing: Metallized
- Cable diameter: 5.75 ... 9 mm
- Length: 69.7 mm
- Width 12.8 mm
- Height: 43 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -35 ... +60 °C
- Cable fixing: Cable clip
- Packaging type
Piece
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
09670370413
- Cable Ø (max.)
9 mm
- Cable Ø up to
5.75 mm
- Cable Ø range
5.75 - 9 mm
- Width
12.8 mm
- Height
43 mm
- Length
69.7 mm
- Features
shielded housing
- Type
09 67 037 0413
Slide
Straight
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003689 HARTING 09 67 037 0413 09670370413 Shell Plastic 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003689 HARTING 09 67 037 0413 09670370413 Shell Plastic 1 pc(s) Piece
Description

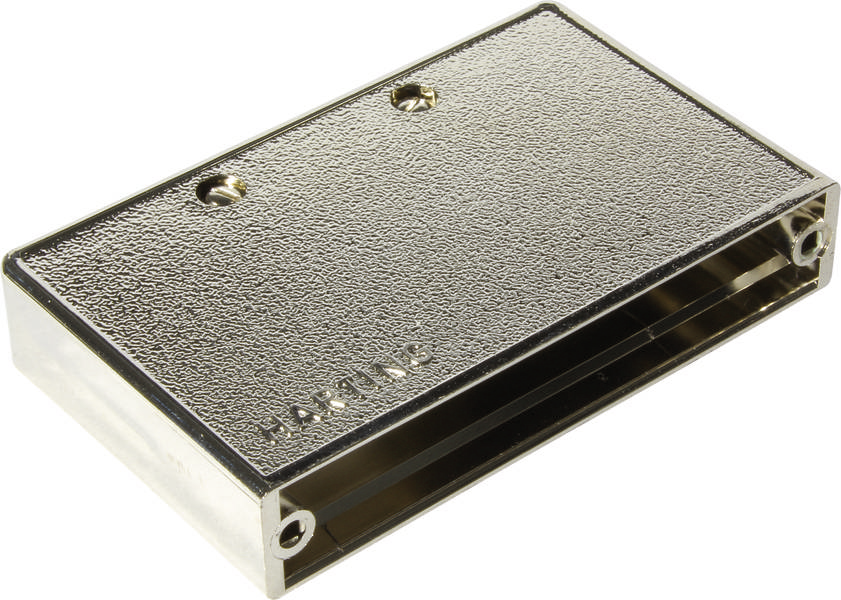

Shell housing, size: D-Sub 4, lever or slide lock, straight cable input, 1x, Material housing: plastic, metalized
