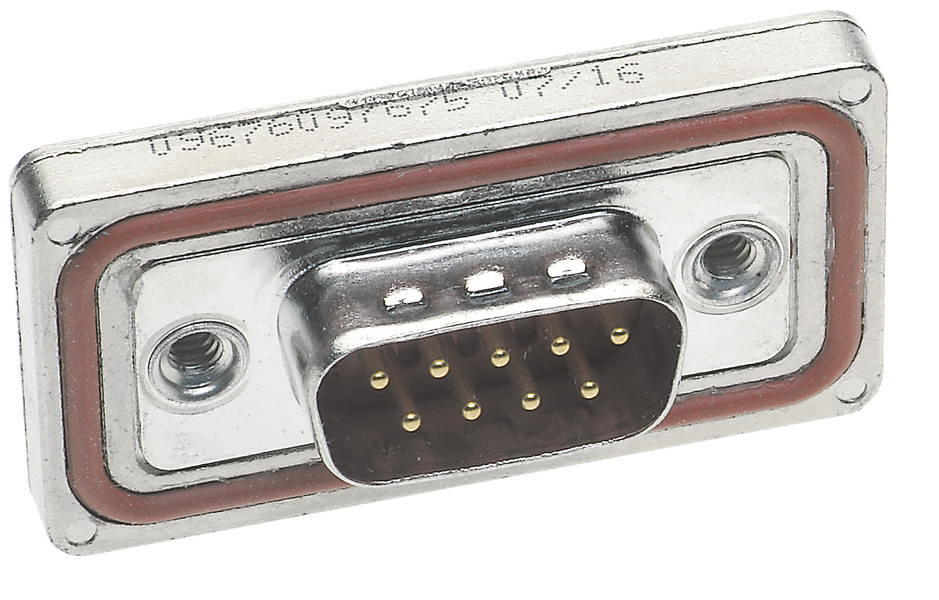

HARTING 09 67 650 9675 09676509675 Connector Number of pins: 50 Soldering 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Connector type
Plug, straight
Number of pins
50
Connection
Soldering
Datasheet (PDF)
Highlights & Details
Connectors
- Connector
- Number of pins: 50
Technical specifications
- Series D-Sub
- Component: Connector
- Contact description: Rotated;straight
- Connection type: Shaft soldering connection
- Number of contacts: 50
- Locking type: Flange with thread M3
- Pitch, connection side 2.74 mm
- Rated current 5 A
- Insulation resistance > 5 x 109 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -25 ... +70 °C
- Mating cycles ≥ 500
- Test voltage Ueff 1.2 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Thermoplastic molding material, glass fiber reinforced; shell: Brass, tin plated
- Colour insert: Red
- Material contacts: Copper alloy
- Contact surface: Precious metal over Ni
- Material flammability class acc. To UL 94: V-0
- DIN 41652 standard
- Net weight: 47.16 g
- Layer thickness ≥ 30 µinch
- Designation IP67
- Airway: ≥ 1 mm
- Creepage distance ≥ 1 mm
- PCB mounting: With snap-in clips
- Hot plugging: No.
- Material: Zinc die-cast, nickel-plated
- Circuit board thickness: 1,6 mm
- Gender: Pen
- Description: With rear frame
- Further contacts: With earthing contact
- Protection class according to IEC 60529:IP67
- Tightening torque: 0.4 ... 0.6 Nm screw bolts
- Size D-Sub 5
- Material seal: Silicone
- Colour of seal: Red
- Series distance 2.84 mm
- Installation height: 8 mm
- Packaging type
Piece
- Type
D-Sub
- Product type
Connector
- Connector type
Plug, straight
- Number of pins
50
- Connection
Soldering
- Content
1 pc(s)
- Mating cycles
500
- Manufacturer part #
09676509675
- Factory colour
Red
- Contact type
Machined contacts
- Contact material
Copper alloy
- Contact surface
Precious metal
- CS
2.74 mm
IP67
- Features
for wave soldering
- Type
09 67 650 9675
Plug/bus
50
Documents & Downloads
Datasheet
Datasheet 3004432 HARTING 09 67 650 9675 09676509675 Connector Number of pins: 50 Soldering 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3004432 HARTING 09 67 650 9675 09676509675 Connector Number of pins: 50 Soldering 1 pc(s) Piece
Description
Plug connector, with rear frame, shaft solder connection, rated current: 5 A, pin, Size D-Sub 5
