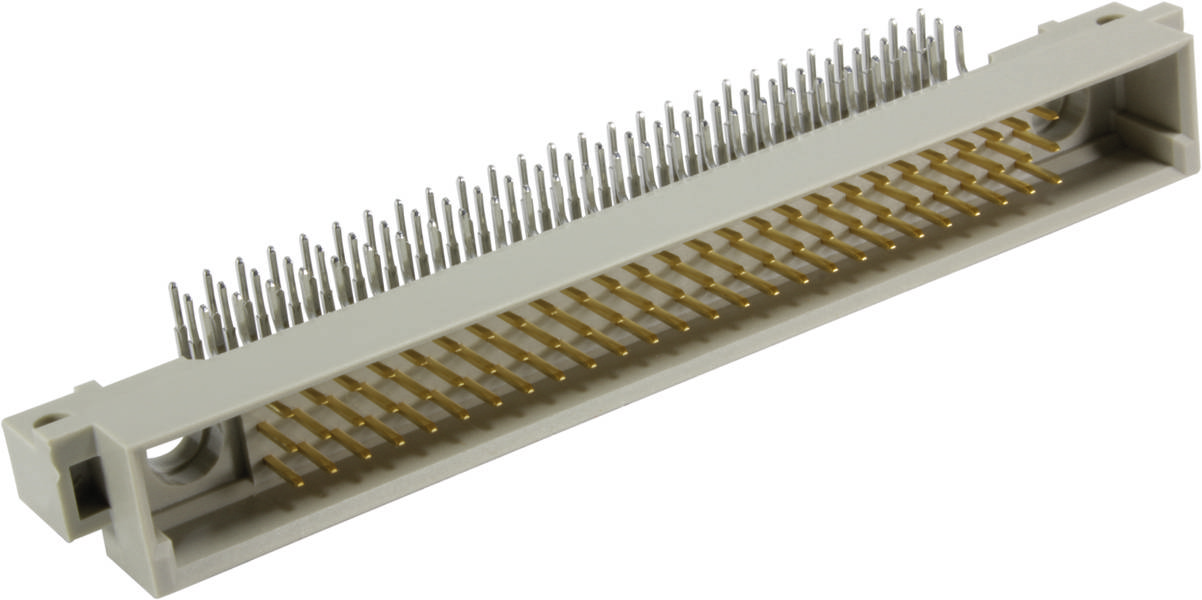

Name: HARTING 09031786901 Edge connector (pins) No. of rows 3 1 pc(s)
Brand: HARTING
SKU: 3003467

Product type

Edge connector (pins)

Connector type

right angle

2.54 mm

7.62 mm

Content

1 pc(s)

Total number of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Terminal pin strip

DIN 41612 series
Component: Terminal strip
Contact description: Angled
Connection type: Shaft soldering connection
Type of connection: Motherboard to Daughtercard;Extender card;PCB to cable
Number of contacts: 80
Plug contact series 3
Grid, connection side 2.54 mm;7.62 mm
Rated current: Rated current measured at 20 °C, for details see derating curve
Insulation resistance >1012 Ω
Continuous resistance ≤ 20 mΩ
Temperature limit: -55 ... +125 °C
Plug and pull force ≤ 74 N
Mating cycles ≥ 400
Test voltage Ueff 1 kV
Insulation material group IIIa (175 ≤ CTI < 400)
Material application: Thermoplastic molding material, glass fiber reinforced
Colour use: RAL 7032 (pebble gray)
Material contacts: Copper alloy
Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
Material flammability class acc. To UL 94: V-0
IEC 60603-2 standard
Net weight: 14.47 g
Name: Type M
Pitch, plug-side 2.54 mm;7.62 mm
Airway: ≥ 1.2 mm
Creepage distance ≥ 1.2 mm
Features: Lead-free;Rated current special contacts: See data sheet of the selected contacts
Number of signal pins: 78
Number of special contacts: 2
PCB mounting: With flange
Hot plugging: No.
Path classification: F4/I3 according to NFF 16-101/102
Contact equipment: Rows a, b and c, positions 4, 5, ... , 28, 29
Coding: Contact loss
