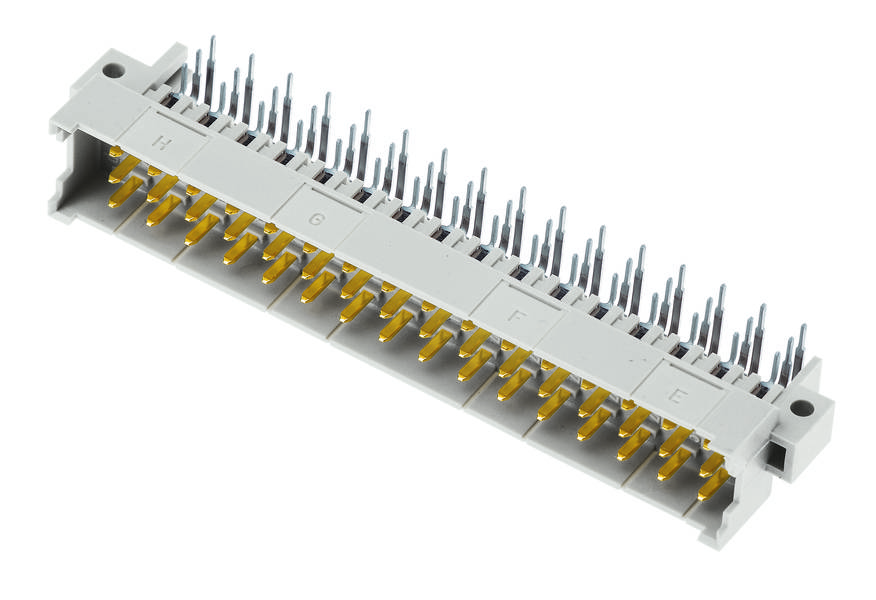

HARTING 09061326931222 Edge connector (pins) No. of rows 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (pins)
Connector type
right angle
CS
2.54 mm
5.08 mm
Content
1 pc(s)
Total number of pins
32
Datasheet (PDF)
Highlights & Details
Terminal pin strip
- Total number of pins 32
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- DIN 41612 series
- Component: Terminal strip
- Contact description: Angled
- Connection type: Shaft soldering connection
- Type of connection: Motherboard to Daughtercard;Extender card;PCB to cable
- Number of contacts: 32
- Plug contact series 3
- Grid, connection side 2.54 mm;5.08 mm
- Rated current: Rated current measured at 20 °C, for details see derating curve
- Insulation resistance >1011 Ω
- Constant resistance: 15 mΩ
- Temperature limit: -55 ... +125 °C
- Plug and pull force ≤ 50 N
- Mating cycles ≥ 400
- Test voltage Ueff 1.55 kV (contact-contact)
- Insulation material group II (400 ≤ CTI < 600)
- Material application: Thermoplastic molding material, glass fiber reinforced
- Colour application RAL 7035 (light gray)
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- IEC 60603-2 standard
- Net weight: 22.16 g
- Name: Type F
- Pitch, plug-side 3.81 mm;5.08 mm
- Airway: ≥ 1.6 mm
- Creepage distance ≥ 3 mm
- Features: Lead-free
- PCB mounting: With flange
- Hot plugging: No.
- Railway classification: F1/I2 in accordance with NFF 16-101/102
- Contact configuration: Rows z and d, positions 2, 4, ... , 30, 32
- Coding: Hole coding;collar coding;coding with contact loss;D20 coding
- Product type
Edge connector (pins)
- Connector type
right angle
- Total number of pins
32
- No. of rows
3
- CS
2.54 mm
5.08 mm
- Connection
Soldering
- Factory colour
Grey-white (RAL 7035)
- Case material
PA
- Manufacturer part #
09061326931222
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 06 132 6931 222
- Resistance
15 mΩ
- Insulation resistance
1011 Ω
Printed circuit board to cable
Other
32
Other
-55-125 °C
Other
Soldering connection
Tin
2.54 mm
3
3.81 mm
Thermoplastic
0°/180° (horizontal)
Flange
6 A
Documents & Downloads
Datasheet
Datasheet 3003509 HARTING 09061326931222 Edge connector (pins) No. of rows 3 1 pc(s)
Datasheet 3003509 HARTING 09061326931222 Edge connector (pins) No. of rows 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003509 HARTING 09061326931222 Edge connector (pins) No. of rows 3 1 pc(s)
Description
Terminal strip, shaft solder connection, rated current 6 A, contacts: 32, angled, copper alloy
