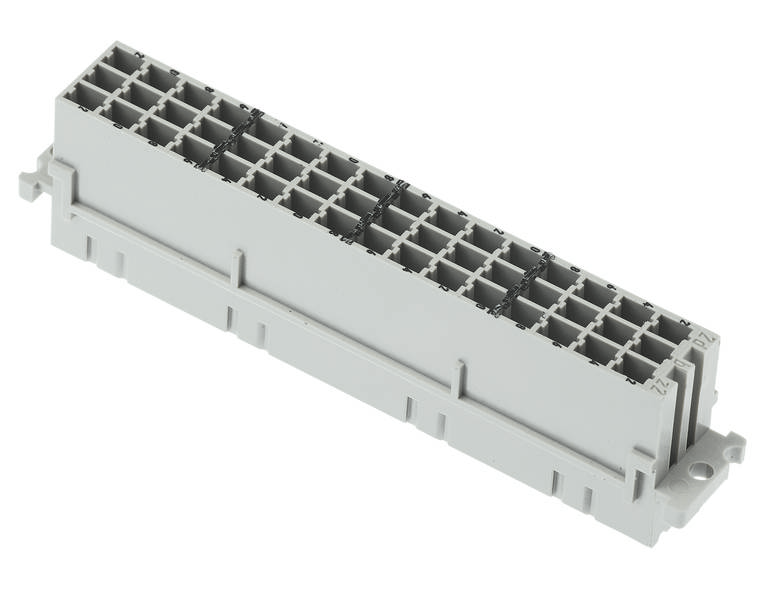

HARTING 09062483201222 Edge connector (sockets) No. of rows 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
CS
3.81 mm
5.08 mm
Content
1 pc(s)
Total number of pins
48
No. of rows
3
Datasheet (PDF)
Highlights & Details
- Total number of pins 48
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Total number of pins
48
- No. of rows
3
- CS
3.81 mm
5.08 mm
- Connection
Crimp
- Factory colour
Pebble grey (RAL 7032)
- Case material
PA
- Manufacturer part #
09062483201222
- Content
1 pc(s)
- Type
09 06 248 3201 222
Printed circuit board to cable
Other
48
Other
-55-125 °C
Other
Other
Other
3.81 mm
3
3.81 mm
Thermoplastic
Other
Flange
