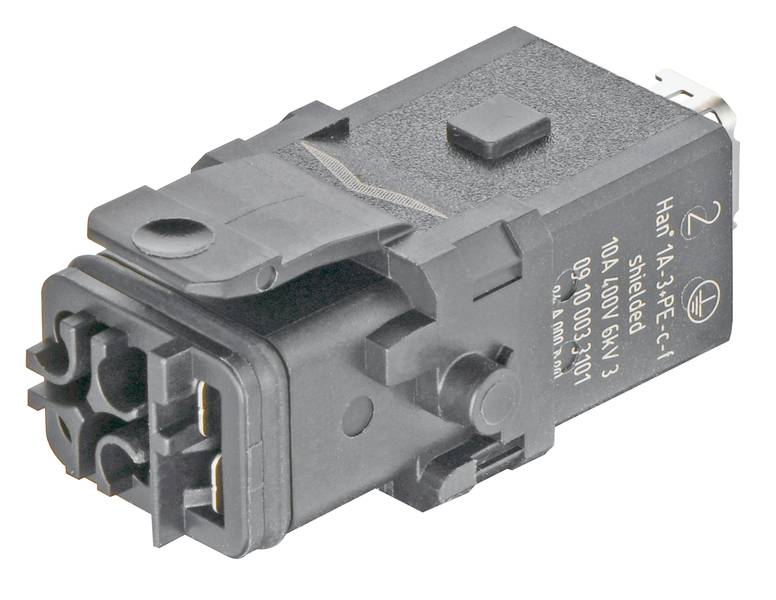

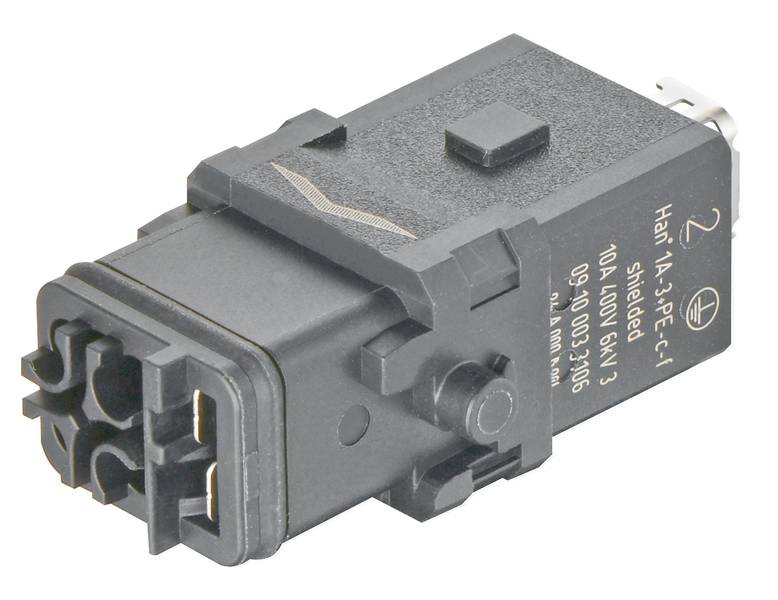

HARTING 09100033101 Pin inset Han® 1A 3 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® 1A
Connection
Crimp
Total no. of pins
3 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® 1A
- Connection type: Crimp connection
- Number of contacts: 3
- Locking type: Locking latch
- Rated current 10 A
- Insulation resistance >108 Ω
- Temperature limit: -30 ... +90 °C
- Mating cycles ≥ 100
- Material application: Polyamide (PA)
- Colour use: RAL 9005 (jet black)
- Material flammability class acc. To UL 94: V-0
- Standards: EN 45545-2 Fire protection in rail vehicles;IEC 61373 Class 1 Class B;IEC 60664-1;IEC 61984
- Net weight: 15.6 g
- Rated voltage: 400 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Notes: In the case of a HAN® 1A configuration consisting only of contact inserts (with or without strain relief, 09 10 000 5300), it is an unencapsulated connector according to IEC 61984. The protection against electric shock must be ensured by the type of installation by the user.;With the HAN® 1A contact insert there is no conductive connection between the PE contact and the shielding element. To protect against electric shock, the user must connect the connected cable shield to the shielding element to the protective earth (PE).;Contact inserts must not be plugged into voltage/load or disconnected.;Contact inserts must not be live when unconnected.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 0.14 ... 2.5 mm².
- Shielding: With cable tie
- Further contacts: + shielding
- Protection class according to IEC 60529:IP20
- Design size 1 A
- Approvals DNV GL
- PE contact: Yes
- Material sealing: NBR
- Rated voltage according to UL: 600 V.
- Colour of seal: Black
- Rated current UL 15 A AWG 14
- Product type
Pin inset
- Factory colour
Jet black (RAL 9005)
- Series
Han® 1A
- Features
+ cable tie
- Connection
Crimp
- Number of pins
3
- Total no. of pins
3 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 100
- Series
Han® 1A
- Content
1 pc(s)
- Max. temperature
+90 °C
- Min. temperature
-30 °C
- Leading contact (PE)
Yes
Documents & Downloads
Datasheet
Datasheet 3007783 HARTING 09100033101 Pin inset Han® 1A 3 + PE Crimp 1 pc(s)
Datasheet 3007783 HARTING 09100033101 Pin inset Han® 1A 3 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007783 HARTING 09100033101 Pin inset Han® 1A 3 + PE Crimp 1 pc(s)
Description
Inserts, Crimp connection, socket, Polyamide (PA), RAL 9005 (deep black), Rated current 10 A, size: 1 A, contacts: 3 + shield
