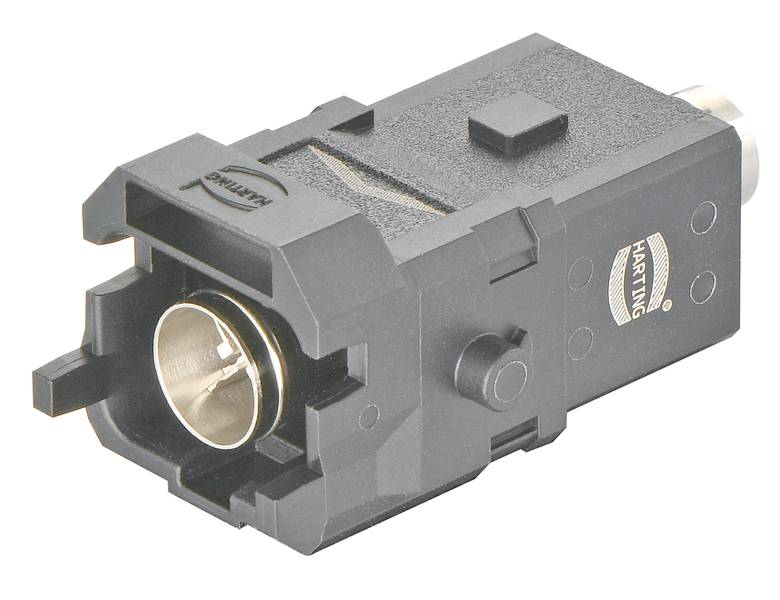

HARTING 09100083001 Pin inset Han® 1A 8 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® 1A
Connection
Crimp
Total no. of pins
8
Core cross section (min.)
0.08 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® 1A
- Connection type: Crimp connection
- Number of contacts: 8
- Locking type: Locking latch
- Rated current 0.5 A
- Insulation resistance >108 Ω
- Temperature limit: -30 ... +90 °C
- Mating cycles ≥ 100
- Material application: Polyamide (PA)
- Colour use: RAL 9005 (jet black)
- Material flammability class acc. To UL 94: V-0
- Standards: EN 45545-2 Fire protection in rail vehicles;IEC 61373 Class 1 Class B;IEC 60664-1;IEC 61984
- Net weight: 19 g
- Rated voltage: 48 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Notes: In the case of a HAN® 1A configuration consisting only of contact inserts (with or without strain relief, 09 10 000 5300), it is an unencapsulated connector according to IEC 61984. Protection against electric shock must be guaranteed by the type of installation by the user.;Contact inserts may not be inserted under voltage/load or disconnected.;Contact inserts may not be live in unmated condition.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Gender: Pen
- Conductor cross-section: 0.08 ... 25 mm²
- Shielding: With cable tie
- Further contacts: + shielding
- Transmission features: Cat. 6A class EA to 500 MHz
- Protection class according to IEC 60529:IP20
- Design size 1 A
- Approvals DNV GL
- Product type
Pin inset
- Factory colour
Jet black (RAL 9005)
- Series
Han® 1A
- Connection
Crimp
- Number of pins
8
- Total no. of pins
8
- Core cross section (min.)
0.08 mm²
- Core cross section (max.)
0.25 mm²
- Mating cycles
≥ 100
- Series
Han® 1A
- Content
1 pc(s)
- Max. temperature
+90 °C
- Min. temperature
-30 °C
48 V
FALSE
8
Pin
-30-90 °C
V0
0.8 kV
Crimp connection
Other
3
FALSE
0.08-0.25 mm²
0.08-0.25 mm²
FALSE
Other
Thermoplastic
0.5 A
Thermoplastic
100
8
Documents & Downloads
Datasheet
Datasheet 3007855 HARTING 09100083001 Pin inset Han® 1A 8 Crimp 1 pc(s)
Datasheet 3007855 HARTING 09100083001 Pin inset Han® 1A 8 Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007855 HARTING 09100083001 Pin inset Han® 1A 8 Crimp 1 pc(s)
Description
Inserts, Crimp connection, Pin, Polyamide (PA), RAL 9005 (deep black), Rated current 0.5 A, size: 1 A, contacts: 8 + shield
