HARTING 09140013004 Twin module 1 Crimp, Axial screw terminal 1 pc(s)

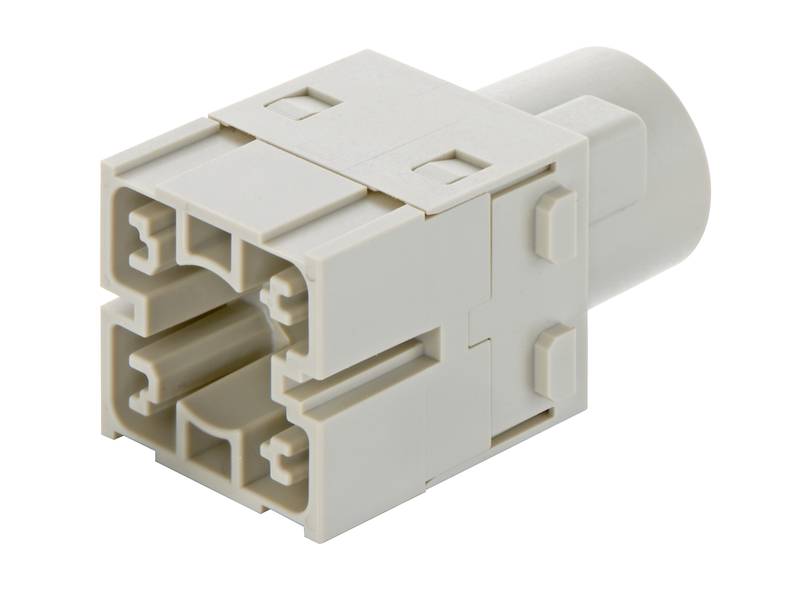

A white, rectangular plug connector with multiple socket ports. Suitable for connecting electronic devices.

A white, rectangular plug connector with multiple socket ports. Suitable for connecting electronic devices.

Product type

Twin module

Connection

Crimp

Axial screw terminal

Total no. of pins

1

Core cross section (min.)

70 mm²

Core cross section (max.)

120 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Twin module

Factory colour: Pebble grey (RAL 7032)

Features: no wire

Connection: Crimp
Axial screw terminal

Number of pins: 1

Total no. of pins: 1

Core cross section (min.): 70 mm²

Core cross section (max.): 120 mm²

Mating cycles: ≥ 500

Series: Han-Modular®

Content: 1 pc(s)

Max. temperature: 125 °C

Min. temperature: -40 °C

Leading contact (PE): No

: 1000 V

: FALSE

: 1

: Pin

: -40-125 °C

: V0

: 8 kV

: Crimp connection

: Other

: 3

: TRUE

: 70-120 mm²

: 70-120 mm²

: FALSE

: Other

: Thermoplastic

: 300 A

: Thermoplastic

: 500

: 1

UKCA: yes
