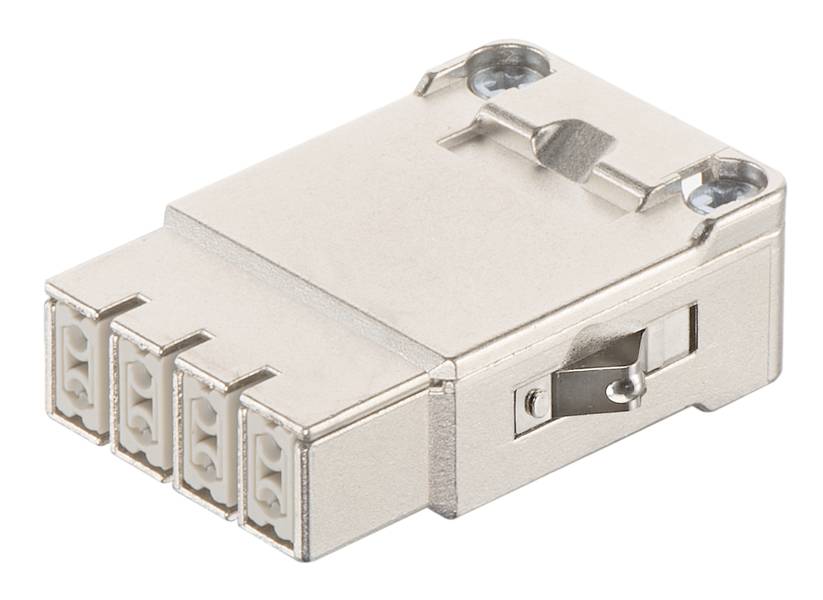

HARTING 09142083112 Pin inset 8 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Total no. of pins
8
Core cross section (min.)
0.09 mm²
Core cross section (max.)
0.52 mm²
Datasheet (PDF)
Technical specifications
- Connection type: Crimp connection
- Number of contacts: 8
- Rated current 5 A
- Temperature limit: -40 ... +85 °C
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 37.2 g
- Features: Suitable for PoE+
- RATED VOLTAGE 50 V AC;60 V DC
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Notes: With additional shield connection to the joint frame; please order crimp contacts separately; order adapter module separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Gender: Jack
- Conductor cross-section: 0.09 ... 0.52 mm²
- Description: HAN® Gigabit HMC use
- Further contacts: + shielding
- Transmission features: Cat. 6A class EA to 500 MHz
- Material shielding: Zinc die-cast, nickel-plated
- Approvals DNV GL
- Rated voltage according to UL: 30 V.
- Constant resistance, shielding: ≤ 100 mΩ
- Mating cycles with other HMC components: ≥ 10,000
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Features
+ shielding
- Connection
Crimp
- Number of pins
8
- Total no. of pins
8
- Core cross section (min.)
0.09 mm²
- Core cross section (max.)
0.52 mm²
- Mating cycles
≥ 10.000
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
50 V
FALSE
8
Bus
-40-85 °C
V0
0.8 kV
Crimp connection
Other
3
TRUE
0.09-0.52 mm²
0.09-0.52 mm²
Other
Thermoplastic
5 A
Thermoplastic
8
Documents & Downloads
Datasheet
Datasheet 3007492 HARTING 09142083112 Pin inset 8 Crimp 1 pc(s)
Datasheet 3007492 HARTING 09142083112 Pin inset 8 Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007492 HARTING 09142083112 Pin inset 8 Crimp 1 pc(s)
Description
Crimp connection, socket, contacts: 8 + shielding, conductor cross-section: 0.09...0.52 mm², rated current: 5 A, polycarbonate (PC), RAL 7032 (pebble gray)
