Name: HARTING 09155052601 Pin inset 5 + PE Screws 1 pc(s) Piece
Brand: HARTING
SKU: 3008020

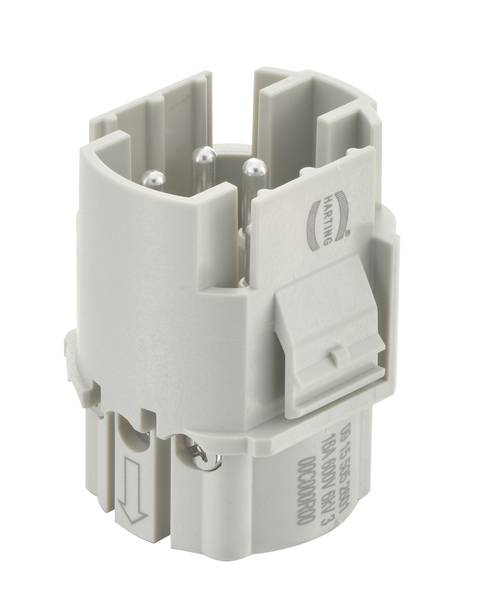

A grey plastic component with metal pins and clips, likely an electrical connector or adapter.

Packaging type

Piece

Product type

Pin inset

Connection

Screws

Total no. of pins

5 + PE

Core cross section (min.)

0.75 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Pin inset

Factory colour: Pebble grey (RAL 7032)

Features: with screw connection

Connection: Screws

Number of pins: 5

Total no. of pins: 5 + PE

Core cross section (min.): 0.75 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: ≥ 500

Series: Han® F+B

Content: 1 pc(s)

Max. temperature: +125 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

: 600 V

: TRUE

: 5

: Pin

: -40-125 °C

: V0

: 6 kV

: Screw connection

: Silver

: 3

: FALSE

: 0.75-2.5 mm²

: 0.75-2.5 mm²

: TRUE

: Other copper alloys

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 5

Variants(All information is without VAT, plus shipping costs)

Connection

Factory colour

Core cross section (max.)

Core cross section (min.)

Total no. of pins

HARTING 09155052601 Pin inset 5 + PE Screws 1 pc(s) Piece

Item no:3008020

Unavailable

Conrad Electronic

This article

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.75 mm²

5 + PE

Piece(s)

Minimum order quantity: 1

Multiple: 1

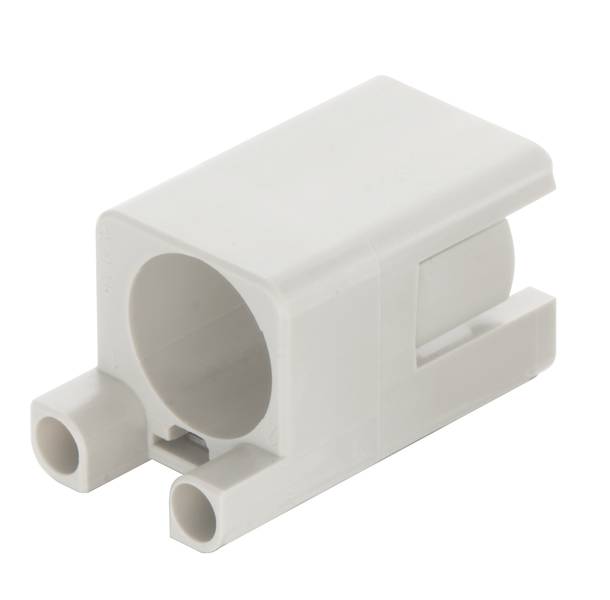

HARTING 09150033002 Pin inset 1, 4, 8 Crimp 1 pc(s) Piece

Item no:3007873

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

1, 4, 8

Piece(s)

Minimum order quantity: 1

Multiple: 1

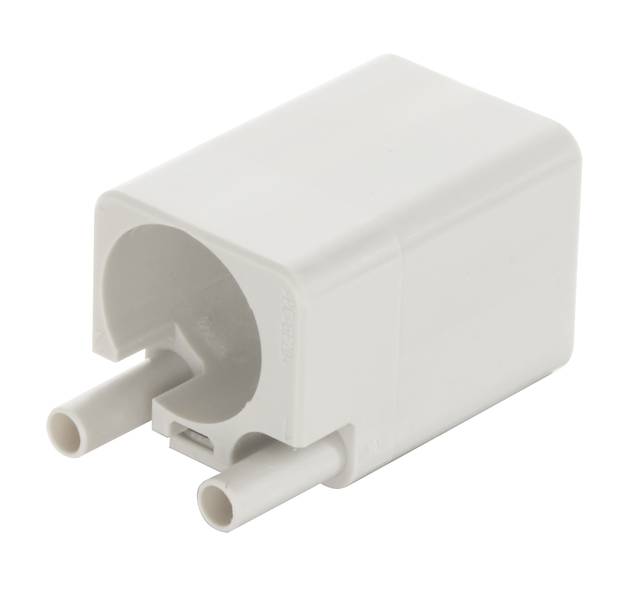

HARTING 09150033102 Pin inset 1, 4, 8 Crimp 1 pc(s) Piece

Item no:3007800

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

1, 4, 8

Piece(s)

Minimum order quantity: 1

Multiple: 1

HARTING 09150073001 Pin inset 7 Crimp 1 pc(s)

Item no:3007854

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

Piece(s)

Minimum order quantity: 1

Multiple: 1

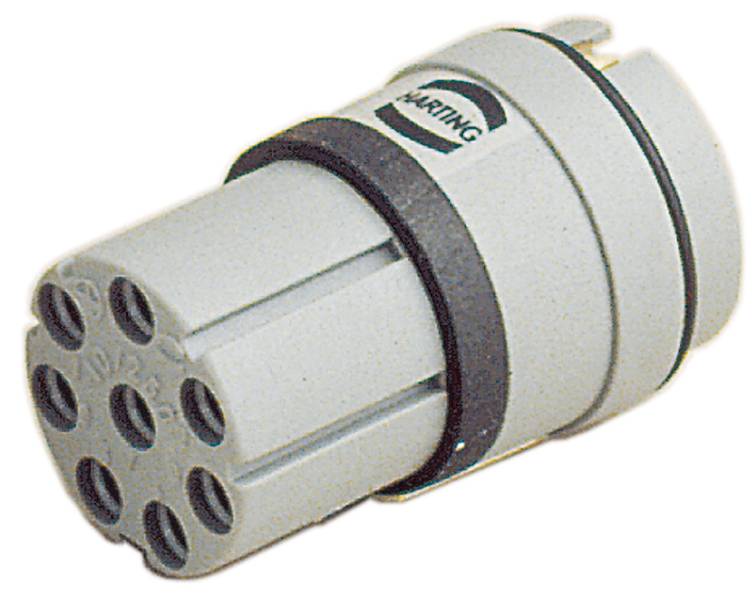

HARTING 09150073101 Pin inset 7 Crimp 1 pc(s) Piece

Item no:3007781

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

Piece(s)

Minimum order quantity: 1

Multiple: 1

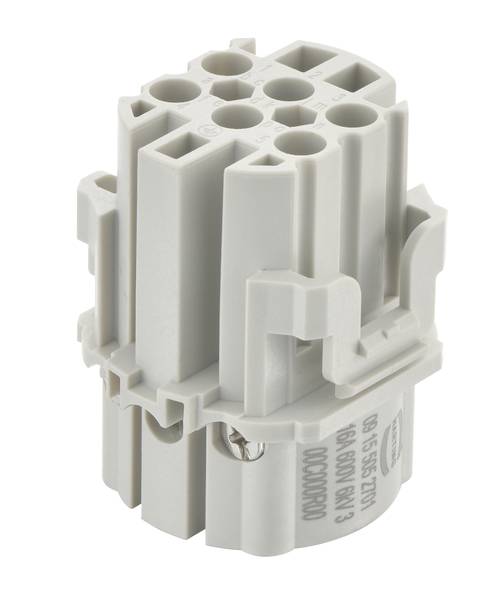

HARTING 09155052701 Pin inset 5 + PE Screws 1 pc(s) Piece

Item no:3007998

Unavailable

Conrad Electronic

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.75 mm²

5 + PE

Piece(s)

Minimum order quantity: 1

Multiple: 1

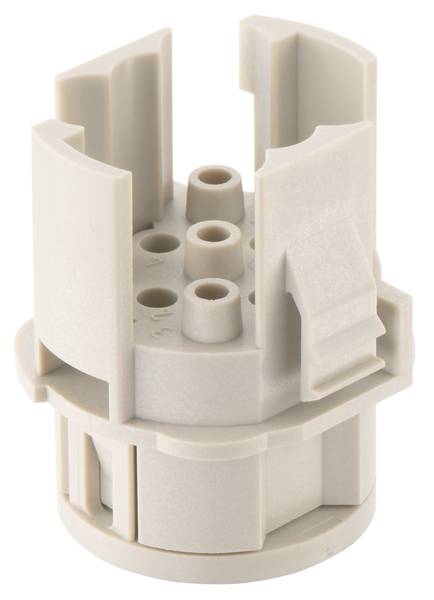

HARTING 09155083001 Pin inset 8 Crimp 1 pc(s)

Item no:3007903

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

Piece(s)

Minimum order quantity: 1

Multiple: 1

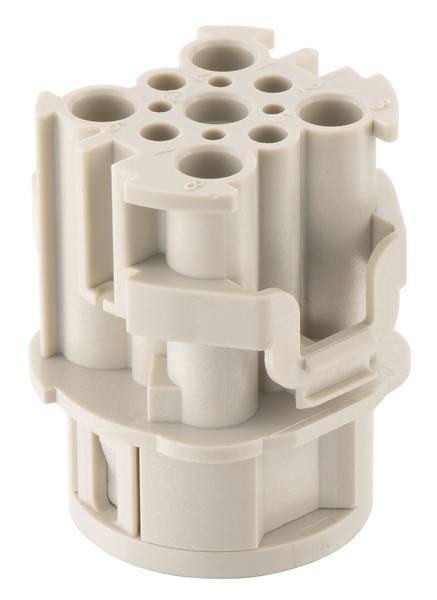

HARTING 09155083101 Pin inset 8 + PE Crimp 1 pc(s)

Item no:3007831

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

4 mm²

0.14 mm²

8 + PE

Piece(s)

Minimum order quantity: 1

Multiple: 1

HARTING 09155123002 Pin inset 12 + PE Crimp 1 pc(s)

Item no:3007902

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

4 mm²

0.14 mm²

12 + PE

Piece(s)

Minimum order quantity: 1

Multiple: 1

HARTING 09155123102 Pin inset 12 + PE Crimp 1 pc(s)

Item no:3007830

Unavailable

Conrad Electronic

Crimp

Pebble grey (RAL 7032)

4 mm²

0.14 mm²

12 + PE

Piece(s)

Minimum order quantity: 1

Multiple: 1
