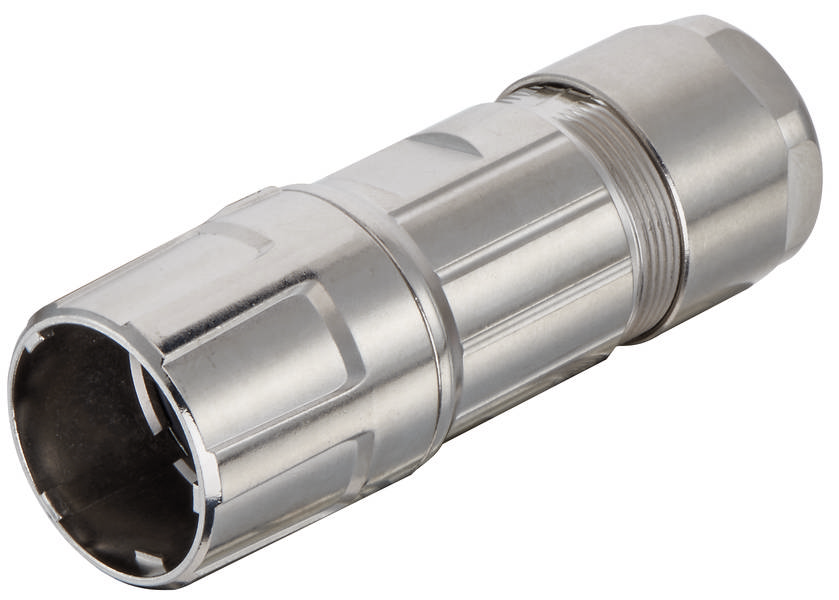

HARTING 09156000483 Bush enclosure Sleeve Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bush enclosure
Connector type
Sleeve
Content
1 pc(s)
Type
09 15 600 0483
Max. temperature
125 °C
Datasheet (PDF)
Technical specifications
- Series: Round plug connector M23
- Locking type: ComLock-S - quick release fastener
- Temperature limit: -40 ... +125 °C
- Net weight: 92.2 g
- Designation: Power
- Notes: Compatible with SpeedTec (TE)
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Protection class according to IEC 60529: IP67 in locked state;IP69 / IPX9K according to ISO 20653 in locked state
- Housing description: EMC version
- M23 design
- Casing type: Sleeve casing
- Design: Straight cable input
- Clamping range: 11 ... 17 mm
- Material housing: Copper zinc alloy
- Surface of housing: Nickel-plated
- Type
09 15 600 0483
- Product type
Bush enclosure
- Connector type
Sleeve
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Seal
ComLock-S - Quick release fastener
- Cable Ø (max.)
17 mm
- Cable Ø up to
11 mm
- Case material
Copper alloy, zinc plated
- Weight
92.2 g
- Manufacturer part #
09156000483
- Cable Ø range
11 - 17 mm
- Feature
shielded
- Packaging type
Piece
Other
Gland nut
Brass
Other
-40-125 °C
Other
Plug case
IP67
11-17 mm
Documents & Downloads
Datasheet
Datasheet 3001419 HARTING 09156000483 Bush enclosure Sleeve Piece 1 pc(s)
Datasheet 3001419 HARTING 09156000483 Bush enclosure Sleeve Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001419 HARTING 09156000483 Bush enclosure Sleeve Piece 1 pc(s)
Description
Sleeve casing, EMC version, size: M23, ComLock-S - quick release fastener, straight cable entry, Material housing: copper zinc alloy, nickel plated
