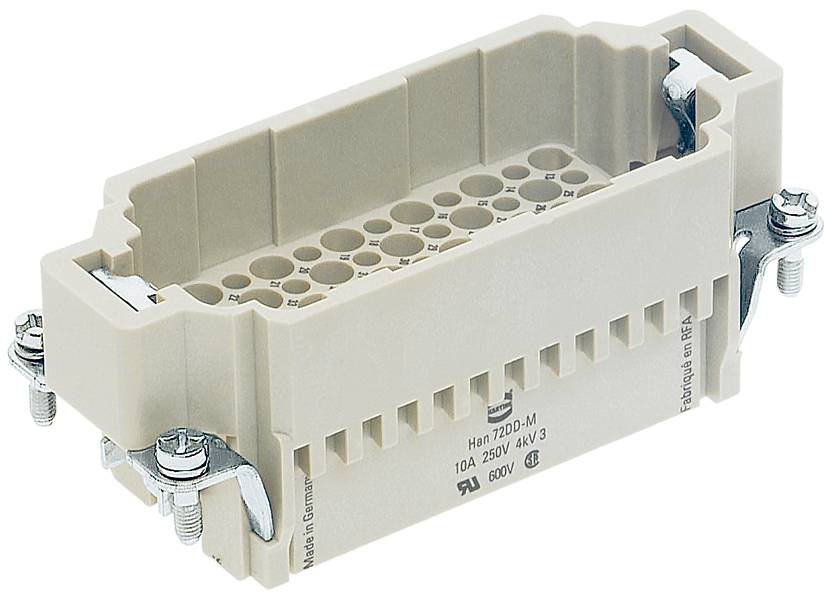

HARTING 09162723001 Connector Han® DD 72 + PE Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Series
Han® DD
Connection
Crimp
Total no. of pins
72 + PE
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® DD
- Features
no wire
- Connection
Crimp
- Number of pins
72
- Total no. of pins
72 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
10.000
- Series
Han DD® HMC
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Connector type
Crimp contact
250 V
FALSE
72
Pin
-40-125 °C
V0
4 kV
Crimp connection
Other
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other
Other
10 A
Other
10000
72
- UKCA
yes
