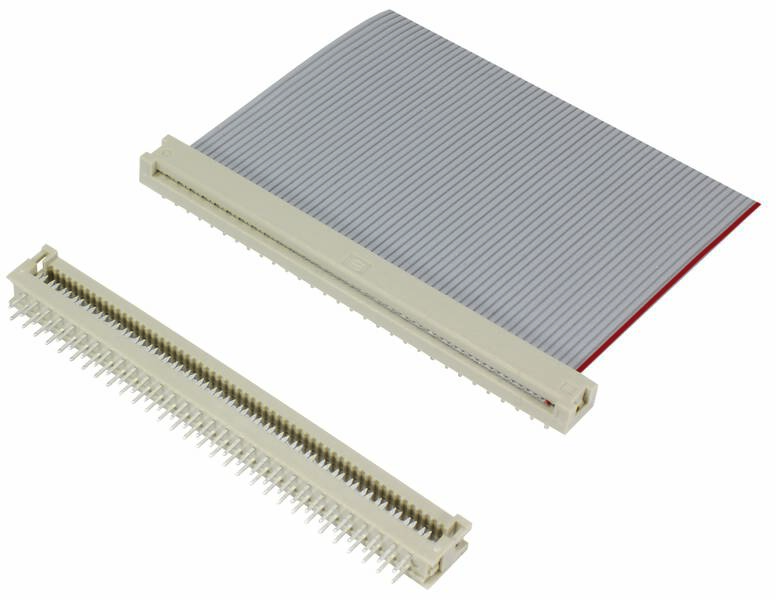

HARTING 09181309622 PCB connector Contact spacing: 2.54 mm Total number of pins: 30 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Connector type
straight
Product type
PCB connector
CS
2.54 mm
No. of rows
2
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
- Total number of pins 30
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Connector type
straight
- Product type
PCB connector
- CS
2.54 mm
- No. of rows
2
- Total number of pins
30
- Nominal current
2.6 A
- Contact material
Copper alloy
- Content
1 pc(s)
- Connection
Soldering
Cut & Clip connector
- Type
09 18 130 9622
- Manufacturer part #
09181309622
- Factory colour
Grey
- Height
5.5 mm
- Max. temperature
105 °C
- Min. temperature
-55 °C
Printed circuit board to cable
Grey
30
-55-105 °C
V0
Soldering connection
Tin
2.9 mm
2.54 mm
2
1.27 mm
Thermoplastic
90° (upwards vertical)
Other
2.6 A
