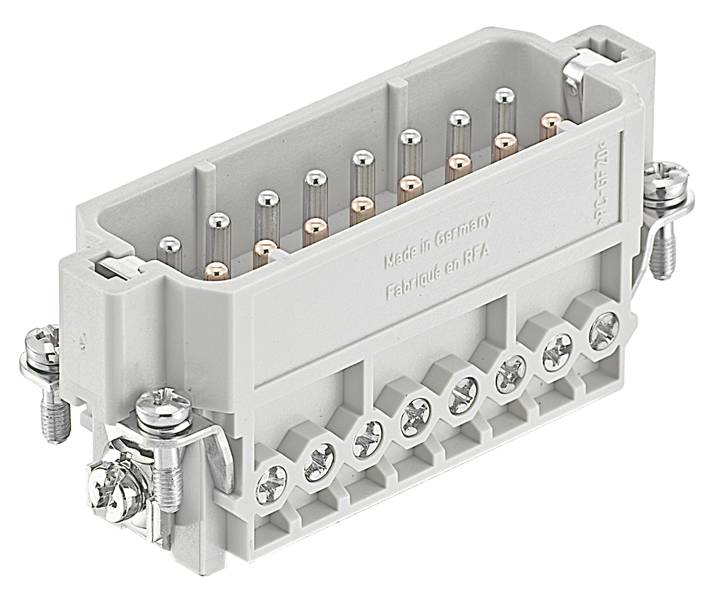

HARTING 09200162691 Pin inset Han® A 16 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® A
Connection
Screws
Total no. of pins
16 + PE
Core cross section (min.)
1 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® Thermocoupling
- Connection type: screw terminals.
- Number of contacts: 16
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 65.7 g
- Designation: HAN A®
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 1 ... 2.5 mm².
- Stripping length: 1 ... 3.5 mm
- Tightening torque 0.5 Nm
- Design size 16 A
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® A
- Features
with screw connection
- Connection
Screws
- Number of pins
16
- Total no. of pins
16 + PE
- Core cross section (min.)
1 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han® Thermocouple
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
250 V
FALSE
16
Pin
-40-125 °C
V0
4 kV
Screw connection
Other
3
FALSE
1-2.5 mm²
1-2.5 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
500
16
Documents & Downloads
Datasheet
Datasheet 3008009 HARTING 09200162691 Pin inset Han® A 16 + PE Screws 1 pc(s)
Datasheet 3008009 HARTING 09200162691 Pin inset Han® A 16 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008009 HARTING 09200162691 Pin inset Han® A 16 + PE Screws 1 pc(s)
Description
Inserts, screw connection, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 16 A, contacts 16
This text is machine translated.
This text is machine translated.
