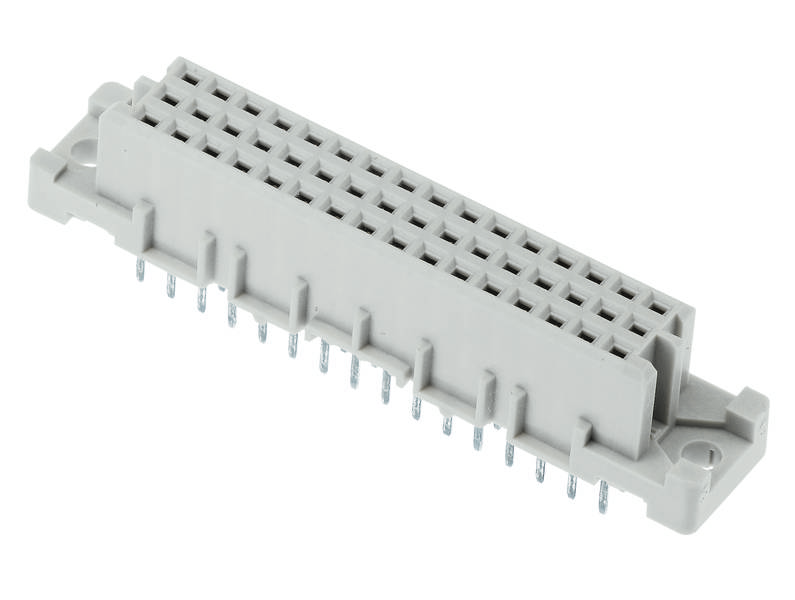

HARTING 09232486825222 Edge connector (sockets) No. of rows 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
48
Datasheet (PDF)
Highlights & Details
- Total number of pins 48
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Connector type
straight
- Total number of pins
48
- No. of rows
3
- CS
2.54 mm
- Connection
Soldering
- Factory colour
Grey-white (RAL 7035)
- Case material
PA
- Manufacturer part #
09232486825222
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 23 248 6825 222
Other
48
Other
-55-125 °C
Other
Soldering connection
Tin
4.5 mm
2.54 mm
3
2.54 mm
Thermoplastic
90° (upwards vertical)
Flange
2 A
