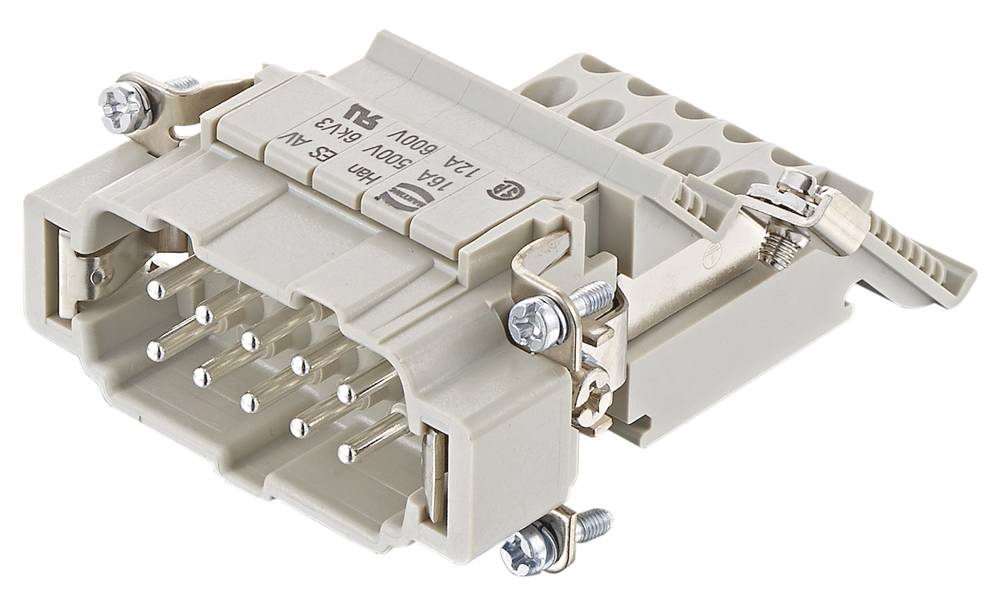

HARTING 09330104639 Connector 10 + PE Spring-loaded heavy duty connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connection
Spring-loaded heavy duty connector
Total no. of pins
10 + PE
Core cross section (min.)
0.14 mm²
Core cross section (max.)
2.5 mm²
Datasheet (PDF)
Technical specifications
- HAN® ES AV series
- Component: Connection distributor
- Connection type: Spring-cage connection
- Number of contacts: 10
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous Resistance ≤ 4 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 105.5 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.14 ... 2.5 mm².
- Description: Right version;Single contour (SK)
- Design size 10 B
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Rated current UL: 12 A.
- Rated current according to CSA: 12 A.
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Features
no wire
- Connection
Spring-loaded heavy duty connector
- Number of pins
10
- Total no. of pins
10 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han® ES AV
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
10
Pin
-40-125 °C
V0
6 kV
Spring clamp connection
Silver
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007709 HARTING 09330104639 Connector 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Datasheet 3007709 HARTING 09330104639 Connector 10 + PE Spring-loaded heavy duty connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007709 HARTING 09330104639 Connector 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Description
Inserts, connector distributor, cage spring connector, pin, polycarbonate (PC), RAL 7032 (pebble gray), rated current 16 A, size 10 B
