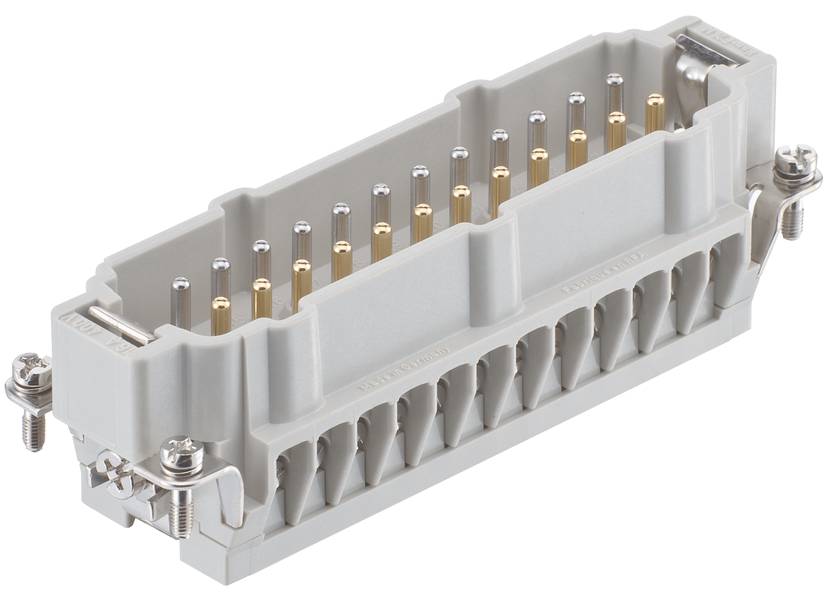

HARTING 09330242691 Pin inset Han® E 24 + PE Screws 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® E
Connection
Screws
Total no. of pins
24 + PE
Datasheet (PDF)
Technical specifications
- Series: HAN® Thermocoupling
- Connection type: screw terminals.
- Number of contacts: 24
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 119 g
- Designation: HAN E®
- Rated voltage: 400 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 1 ... 2.5 mm².
- Tightening torque 0.5 Nm
- Design size 24 B
- Approvals DNV GL
- PE contact: Yes
- With wire protection: Yes
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Features
+ wire protection
- Connection
Screws
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
1 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han® Thermocouple
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
Documents & Downloads
Datasheet
Datasheet 3008015 HARTING 09330242691 Pin inset Han® E 24 + PE Screws 1 pc(s) Piece
Datasheet 3008015 HARTING 09330242691 Pin inset Han® E 24 + PE Screws 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3008015 HARTING 09330242691 Pin inset Han® E 24 + PE Screws 1 pc(s) Piece
Description
Inserts, screw connection, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 24 B, contacts 24
