Name: HARTING 09330322601 Pin inset Han® E 32 + PE Screws 1 pc(s)
Brand: HARTING
SKU: 3008019

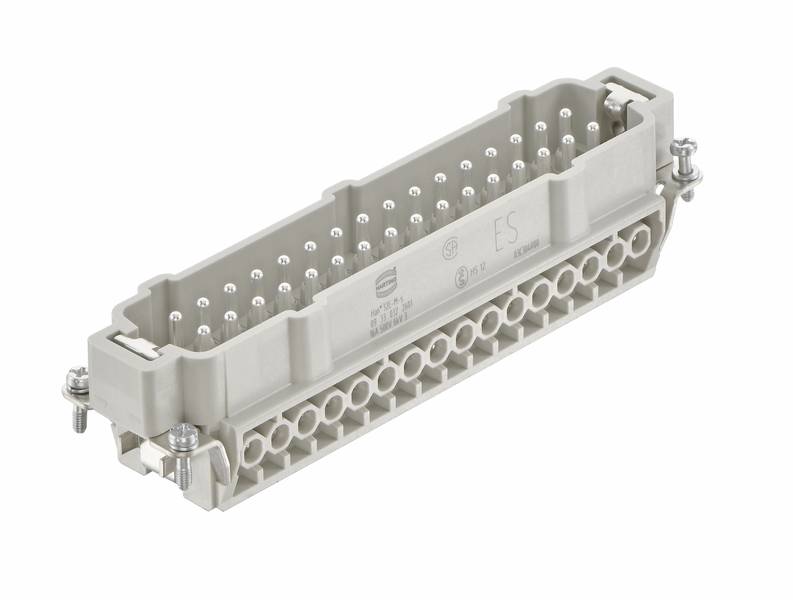

Rectangular connector with multiple round contacts. It is used to connect several cables simultaneously.

Product type

Pin inset

Series

Han® E

Connection

Screws

Total no. of pins

32 + PE

Core cross section (min.)

0.75 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Pin inset

Factory colour: Pebble grey (RAL 7032)

Series: Han® E

Features: with screw connection

Connection: Screws

Number of pins: 32

Total no. of pins: 32 + PE

Core cross section (min.): 0.75 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: 500

Series: Han E®

Content: 1 pc(s)

Max. temperature: 125 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

: 500 V

: TRUE

: 32

: Pin

: -40-125 °C

: V0

: 6 kV

: Screw connection

: Silver

: 3

: FALSE

: 0.75-2.5 mm²

: 0.75-2.5 mm²

: TRUE

: Other copper alloys

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 32

UKCA: yes
